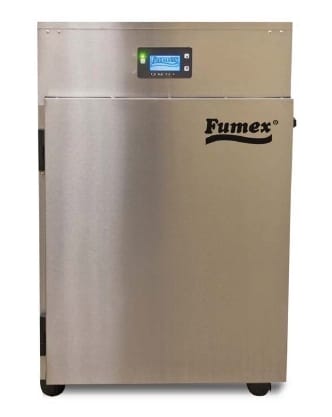

FA5

Indoor Air Cleaner / Fume Extractor

The FA5 indoor air cleaner & fume extractor for electronics manufacturing utilizes a high performance blower and a 4 stage hybrid air filter system to capture and treat the potentially hazardous particulates and gases generated in many electronic manufacturing processes. Easy to use digital controls and an integrated electronic gas sensor continuously monitor system performance and displays operating parameters. Two large capacity prefilters protect the systems large HEPA filter and gas/odor filter providing an extremely cost-effective, efficient air filtration system. The systems filtration capacity and powerful variable speed blower provide maximum application flexibility. Ideal for a variety of light to medium duty clean air applications including:

  • Solder smoke removal
  • Solvent fume extraction
  • Fumes for reflow ovens
  • Wave soldering fumes
  • Conformal coating fumes

FA5 Specifications
Cabinet Construction Cabinet: 304 grade brushed stainless steel
Front access to filters
Baffled – sound attenuated cabinet
Digital Controls • Electronic variable speed blower control
• Individual filter monitoring w/ display
• Calibrated electronic voc/gas sensor
• Electronic relay package for remote
start/stop and filter monitoring
Sound Level 59 dBA
Weight 135 lb / 61.3 kg
Blowers / Performance 210 cfm @39” wc or
385 @ 39’” wc
Blowers Centrifugal Sealed Direct –Drive
Brushless Motor
Electrics 120/1/50-60 or 230/1/50-60
Pre-wired , grounded power cable,
7.5 ft. w/ plug
Amp draw – 12.0 / 15.0
Standard Equipment Standard Filter Set
3”, 4” or 6” diameter inlet
8 ft 2 ply-smooth core rubber hose
Digital Graphic Controls
Interface Package
(4) Industrial grade wheels – 2 locking
Operation Manuals
Options Ducted Exhaust
Gas-Specific carbon filters
Standard Filter Set Pre-Filter
• Approx – 95 sq feet of media
• Deep-pleated dimpled media w/ inner and outer
pleat-lock
• Beverage board construction
HEPA Filter
• 99.97% efficient @ 0.3 microns
• Large capacity mini-pleat construction
• Galvanized steel frame
Gas/Odor Filter
• 25 lbs of media
• Bonded carbon technology
• Broad spectrum gas/odor control
• Galvanized steel frame
