Plastic, Solvent and Chemical Fume Extraction

Fumex manufactures a complete line of fume extractors specifically designed for removing plastic fumes, chemical fumes, solvent fumes and other fumes and odors which are generated in industrial processes. Many manufacturing processes create unhealthy fumes, smoke & odors. Our fume extraction systems remove 99.97% of these dangerous fumes. They are permanent or portable, cost efficient, easy to integrate and reliable with a 2 year warranty.

Fumex fume extractors are designed to work in many situations involving unhealthy plastic fumes, chemical fumes or solvent fumes. They easily integrate into any environment. Our American Made air filtration systems consist of inexpensive pre-filters, HEPA filters and gas/odor filters that remove noxious fumes and return purified air to the workplace. Variable speed blowers and filter monitoring allow for implementation into a variety of applications. VOC sensors indicate when filters need to be replaced to insure safe operating conditions.

GS1-100
Plastic Fumes & Chemical Fume Extractor
GS2-200
GS3-200

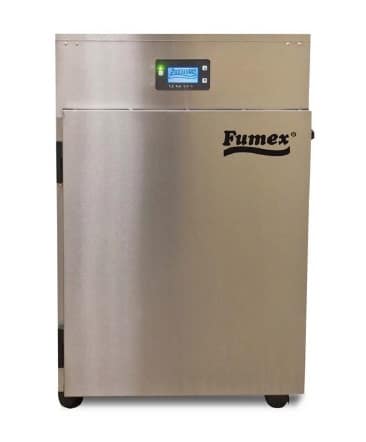

GS3-500
Solvent Fumes & Chemical Fume Extractor
GS1-100 Plastic Fumes & Chemical Fume Extractor GS2-200 Solvent Fumes Air Cleaner GS3-200 Chemical Fumes Air Purifier GS3-500 Solvent Fumes & Chemical Fume Extractor
Cabinet Construction Cabinet: 16 ga . welded steel,
powdercoat finish
Baffled – sound attenuated
Cabinet: 16 ga . welded steel,
powdercoat finish
Baffled – sound attenuated
Brushed Stainless Steel to IP56 compliance
Baffled – sound attenuated
Brushed Stainless Steel to IP56 compliance
Baffled – sound attenuated
Digital Controls • Electronic variable speed blower control
• Electronic individual filter monitoring w/display
• Calibrated electronic VOC /gas sensor w/display
• Electronic relays for remote start
• Electronic variable speed blower control
• Electronic individual filter monitoring w/display
• Calibrated electronic VOC /gas sensor w/display
• Electronic relays for remote start/stop
• Electronic variable speed blower control
• Electronic individual filter monitoring w/display
• Calibrated electronic VOC /gas sensor w/display
• Electronic relays for remote start/stop & filter monitoring
• Electronic variable speed blower control
• Electronic individual filter monitoring w/display
• Calibrated electronic VOC /gas sensor w/display
• Electronic relays for remote start/stop & filter monitoring
Sound Level 59 dBA 59 dBA 59 dBA 59 dBA
Unit Dimensions (L x W x H) 18” x 13.62” x 13.62"
65 lb / 29.48 kg
13.75” x 15.25” x 27.75”
65 lb / 29.48 kg
35” x 23” x 20”
134 lb / 60.8 kg
35” x 23” x 20”
150 lb / 68.1 kg
Blowers Performance 165 cfm at 19" wc 165 cfm at 19" wc 210 cfm at 39" wc 385 cfm at 39" wc
Blowers Centrifugal Centrifugal Direct-drive, brushless motor
20000+hr mtbf
Centrifugal Direct-drive, brushless motor
20000+hr mtbf
Centrifugal Direct-drive, brushless motor
20000+hr mtbf
Centrifugal Direct-drive, brushless motor
20000+hr mtbf
Electrics 90-250/1/50-60
Pre-wired 3 wire power cable,
7.5 ft (2.3m) w/plug
Amp Draw: 6.0 / 4.0
90-250/1/50-600
Pre-wired 3 wire power cable,
7.5 ft (2.3m) w/plug
Amp Draw: 6.0 / 4.0
90-250/1/50-60
Pre-wired 3 wire power cable,
7.5 ft (2.3m) w/plug
Amp Draw: 15.0 / 8.0
120/1/50-60 or 230/1/50-60
Pre-wired 3 wire power cable,
7.5 ft (2.3m) w/plug
Amp Draw: 15.0
Standard Equipment 1 x 2, 1 x 3” or 2 x 2” air inlet
5 ft 2-ply rubber hose, smooth core
(4) Industrial grade wheels
Installation guide / Operations manual
1 x 2, 1 x 3” or 2 x 2” air inlet
5 ft. 2-ply rubber hose, smooth (4) Industrial grade wheels
Installation guide / Operations manual
(4) Industrial grade wheels
3", 4" or 6" air inlet
Installation guide
Operations manual
(4) Industrial grade wheels
3", 4" or 6" air inlet
Installation guide
Operations manual
Options • High efficiency hoods
• Optional piped exhaust
• Gas-specific adsorbent cells
• High efficiency hoods
• Optional piped exhaust
• Gas-specific adsorbent cells
(4) Industrial grade wheels
3", 4" or 6" air inlet
Installation guide
Operations manual
Gas-specific adsorbent cells
High efficiency hoods
Optional piped exhaust
Standard Filter Set Pre-filters: Polyester
Adsorbent Cell: Large capacity gas/odor filter
Pre-filters: Polyester
Adsorbent Cell: Large capacity
gas/odor filter
Adsorbent Cell:
Large capacity gas/odor filter (3)
Adsorbent Cell:
Large capacity gas/odor filter (3)

APPLICATIONS:
Laser Fume Extraction
Pharmaceutical /Medical Manufacturing
Laboratory/Cleanroom Etc…
APPLICATIONS:
Laser Fume Extraction
Pharmaceutical /Medical Manufacturing
Laboratory/Cleanroom Etc…
