FA5-E
Laser Cutter Fume Extractor System
Fumex Inc. manufactures a complete line of laser fume extractor systems specifically designed for laser cutting processes. Our laser fume extractors are portable, cost efficient, reliable and suitable for most environments including offices, schools, universities, museums and commercial / industrial locations. Filtration systems comprised of inexpensive pre-filters, HEPA filters and large gas/odor filters that remove potentially harmful fumes and return purified air back to the workplace. The FA5-E filtration capacity and powerful variable speed blower eliminates process dust, gas and odor and provide maximum flexibility for our laser fume extractor. Ideal for a variety of medium to heavy duty laser cutting applications.
| FA5-E Specifications | |
|---|---|
| Cabinet Construction | Cabinet: 304 grade brushed stainless steel Front access to filters Baffled – sound attenuated cabinet |
| Digital Controls | • Electronic variable speed blower control • Individual filter monitoring w/ display • Calibrated electronic voc/gas sensor • Electronic relay package for remote start/stop and filter monitoring |
| Sound Level | 59 dBA |
| Unit Dimensions (L x W x H) | 22.5” x 23” x 36” 135 lb / 61.3 kg |
| Blowers Performance | 210 cfm @39” wc or 385 @ 39’” wc |
| Blowers Centrifugal | Sealed Direct –drive brushless motor |
| Electrics | 120/1/50-60 or 230/1/50-60 Pre-wired , grounded power cable, 7.5 ft. w/ plug Amp draw – 12.0 / 15.0 |
| Standard Equipment | Standard Filter Set 3”, 4” or 6” diameter inlet 8 ft 2 ply-smooth core rubber hose Digital Graphic Controls Interface Package (4) Industrial grade wheels – 2 locking Operation Manuals |
| Options | Ducted Exhaust Gas-Specific carbon filters |
| Standard Filter Set | Pre-Filter • Approx – 95 sq feet of media • Deep-pleated dimpled media w/ inner and outer pleat-lock • Beverage board construction HEPA Filter • 99.97% efficient @ 0.3 microns • Large capacity mini-pleat construction • Galvanized steel frame Gas/Odor Filter • 25 lbs of media • Bonded carbon technology • Broad spectrum gas/odor control • Galvanized steel frame |
Compare Relevant Models

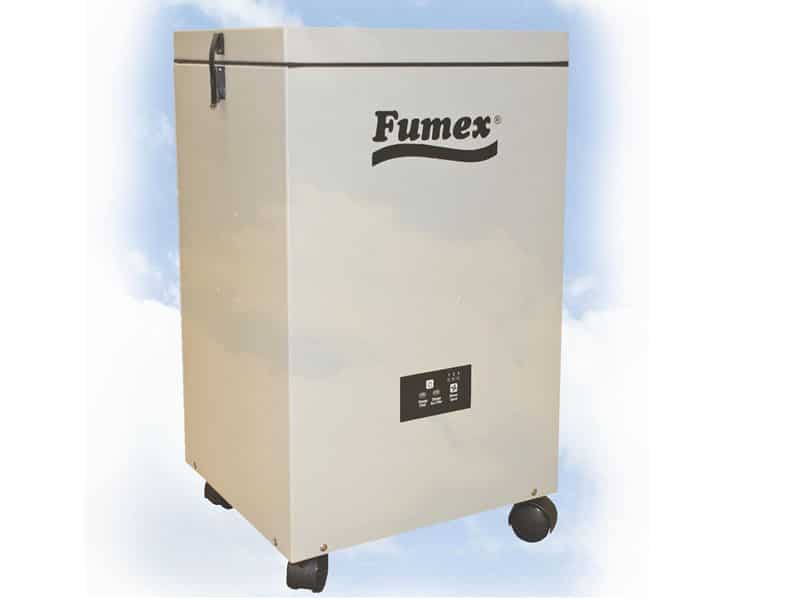

FA1-E-Mini | FA1-E | FA2-E | FA5-E | |
|---|---|---|---|---|
 |  |  |  | |
| Cabinet Construction | Cabinet: 16 ga . welded steel, powdercoat finish Baffled – sound attenuated | Cabinet: 16 ga . welded steel, powdercoat finish Baffled – sound attenuated | Cabinet: 304 grade brushed stainless steel to IP56 compliance Baffled – sound attenuated | Cabinet: 304 grade brushed stainless steel Front access to filters Baffled – sound attenuated cabinet |
| Digital Controls | • Electronic variable speed blower control • Electronic individual filter monitoring w/ display • Calibrated electronic VOC /gas sensor • Electronic relay package for remote start/stop | • Electronic variable speed blower control • Electronic filter monitoring w/ display • Calibrated electronic VOC /gas sensor • Electronic relay package for remote start/stop | • Electronic variable speed blower control • Electronic individual filter monitoring w/ display • Calibrated electronic VOC /gas sensor • Electronic relay package for remote start/stop and filter monitoring | • Electronic variable speed blower control • Individual filter monitoring w/ display • Calibrated electronic voc/gas sensor • Electronic relay package for remote start/stop and filter monitoring |
| Sound Level | 59 dBA | 59 dBA | 60 dBA | 59 dBA |
| Unit Dimensions (L x W x H) | 18” x 13.62” x 13.62" 45 lb / 20.42 kg | 13.75” x 15.25” x 27.75” 80 lb / 26.8 kg | 18.5” x 15.25” x 34.75” 101 lb / 46 kg | 22.5” x 23” x 36” 135 lb / 61.3 kg |
| Blowers Performance | 165 cfm at 19" wc | 165 cfm at 19" wc | 210 cfm @ 39” wc (357 m3/hr @ 9686 Pa) | 210 cfm @39” wc or 385 @ 39’” wc |
| Blowers Centrifugal | Direct-drive, brushless motor | Direct-drive, brushless motor | Centrifugal - direct-drive, brushless motor | Sealed Direct –drive brushless motor |
| Electrics | 120/1/50-60 or 230/1/50-60 Pre-wired 3 wire power cable, 7.5 ft (2.3m) w/plug Amp Draw: 6.0 / 4.0 | 120/1/50-60 or 230/1/50-60 Pre-wired 3 wire power cable, 7.5 ft (2.3m) w/plug Amp Draw: 6.0 / 4.0 | 120/1/50-60 or 230/1/50-60 Pre-wired 3 wire power cable, 7.5 ft (2.3m) w/plug Amp Draw: 12.0 / 7.5 | 120/1/50-60 or 230/1/50-60 Pre-wired , grounded power cable, 7.5 ft. w/ plug Amp draw – 12.0 / 15.0 |
| Standard Equipment | UL listed compliance Standard Filter Set 1 x 3”, 1 x 2” or 2 x 2” air inlet 5 ft. 2-ply rubber hose, smooth core 2”/51mm or 3”/76mm inside diameter w/hose clamps (4) Industrial grade wheels Installation guide / Operations manual | UL listed compliance Standard Filter Set 1 x 3”, 1 x 2” or 2 x 2” air inlet 5 ft. 2-ply rubber hose, smooth core 2”/51mm or 3”/76mm inside diameter w/hose clamps (4) Industrial grade wheels Installation guide / Operations manual | UL and CE listed compliance Standard Filter Set 8 ft. /2.5m 2-ply rubber hose, smooth core 2”/51mm or 3”/76mm inside diameter w/hose clamps Digital graphic controls (4) Industrial grade wheels – 2 locking Installation guide / Operations manual | Standard Filter Set 3”, 4” or 6” diameter inlet 8 ft 2 ply-smooth core rubber hose Digital Graphic Controls Interface Package (4) Industrial grade wheels – 2 locking Operation Manuals |
| Epoxy Coating | N/A | N/A | N/A | N/A |
| Options | High efficiency hoods Optional ducted exhaust Gas-specific filters | High efficiency hoods Optional ducted exhaust Gas-specific filters | Gas-specific filters High efficiency hoods Optional ducted exhaust PVC option: - Epoxy coating on all internal cabinet components - HCL gas specific electronic sensor - AcideX gas neutralizing adsorbent cell | Ducted Exhaust Gas-Specific carbon filters |
| Standard Filter Set | Pre-Filter(s):Polyester pre-filter Large capacity MERV 11 panel filter HEPA Filter: 99.97% efficient @ 0.3 micron Adsorbent Cell: Large capacity gas filter • Blended activated carbon and activated alumina impregnated with potassium permanganate (provides broad spectrum gas control) • 100 % recyclable environmentally safe cell. | Pre-filter • Inexpensive polyester pre-filter • MERV 11 rated filter media • Clean design limits operator exposure to particulates during filter changes HEPA Filter • 99% efficient @ .3micron • Large capacity mini-pleat construction Gas/Odor Filter • Blended media allows for broad spectrum gas/odor control • Improved bonded carbon technology maximizes one pass efficiency • Dustless construction suitable for all environments • 100 % recyclable construction | Pre-Filter • Large capacity - 99% efficient @ 1 micron • Deep-pleated dimpled media maximizes filter loading • Unique construction eliminates filter ”blinding” • Clean design limits operator exposure to particulates during filter changes HEPA Filter • 99% efficient @ .3micron • Large capacity mini-pleat construction Gas/Odor Filter • Blended media allows for broad spectrum gas/odor control • Improved bonded carbon technology maximizes one pass efficiency • Dustless construction suitable for all environments • 100 % recyclable construction Options: PVC option: • Epoxy coating on all internal cabinet components • HCL gas specific electronic sensor • AcideX gas neutralizing adsorbent cell High efficiency hoods Optional ducted exhaust Gas-specific filters | Pre-Filter • Approx – 95 sq feet of media • Deep-pleated dimpled media w/ inner and outer pleat-lock • Beverage board construction HEPA Filter • 99.97% efficient @ 0.3 microns • Large capacity mini-pleat construction • Galvanized steel frame Gas/Odor Filter • 25 lbs of media • Bonded carbon technology • Broad spectrum gas/odor control • Galvanized steel frame |
APPLICATIONS:
Laser Fume Extraction
Pharmaceutical /Medical Manufacturing
Laboratory/Cleanroom Etc…
APPLICATIONS:
Laser Fume Extraction
Pharmaceutical /Medical Manufacturing
Laboratory/Cleanroom Etc…
