Higher Carbon Capacity for Greater Fume Loads

Fumex GS2-200

Fumex GS2-200

Browse accessories Request Quote

More Carbon. More Capacity. More Confidence.

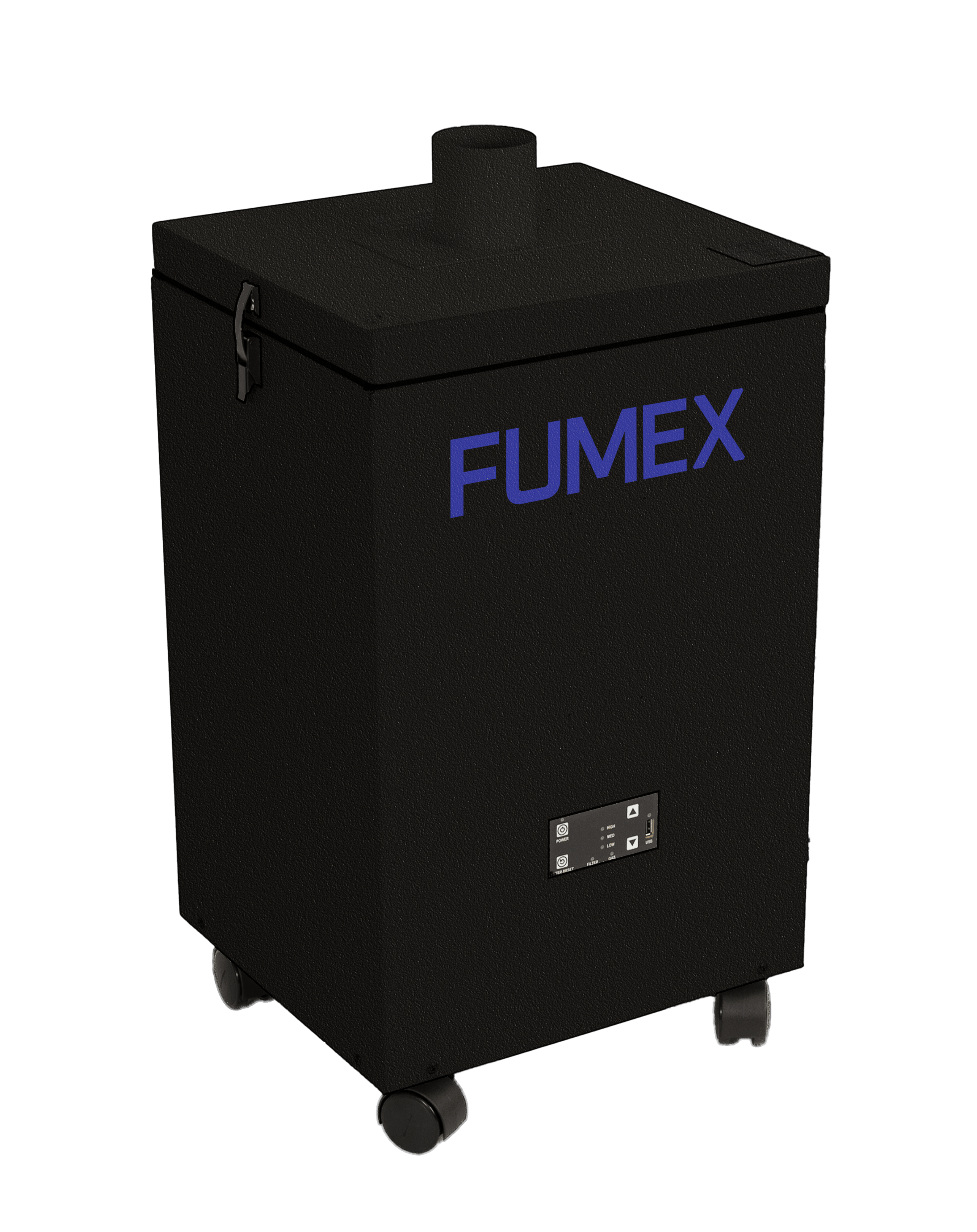

The Fumex GS2-200 scales up the GS1-100 platform with a 12" carbon filter holding 20 lbs. of activated carbon for longer filter life and greater gas absorption capacity. User-friendly digital controls, an integrated VOC gas sensor, and USB programmability are included, suited for higher fume concentrations.

Technical Data Sheet Operations Manual

More Carbon. More Capacity. More Confidence.

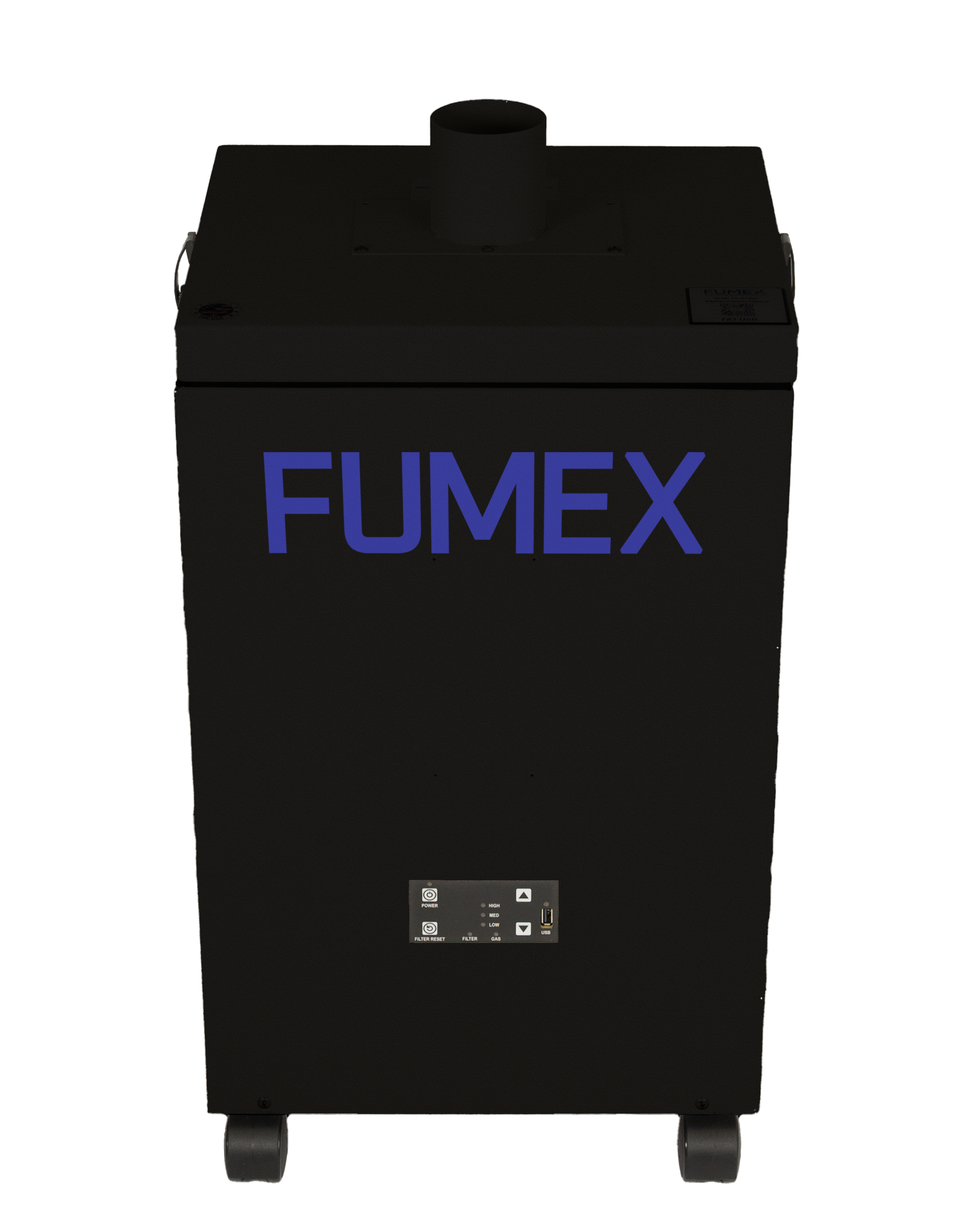

collection banner
165 cfm variable speed blower
20 lbs. activated carbon for extended filter life
Integrated VOC gas sensor
USB programmable controls with data logging

Applications

3d printing
Pharmaceutical & medical
Printing
Beauty
Other
Product meta image

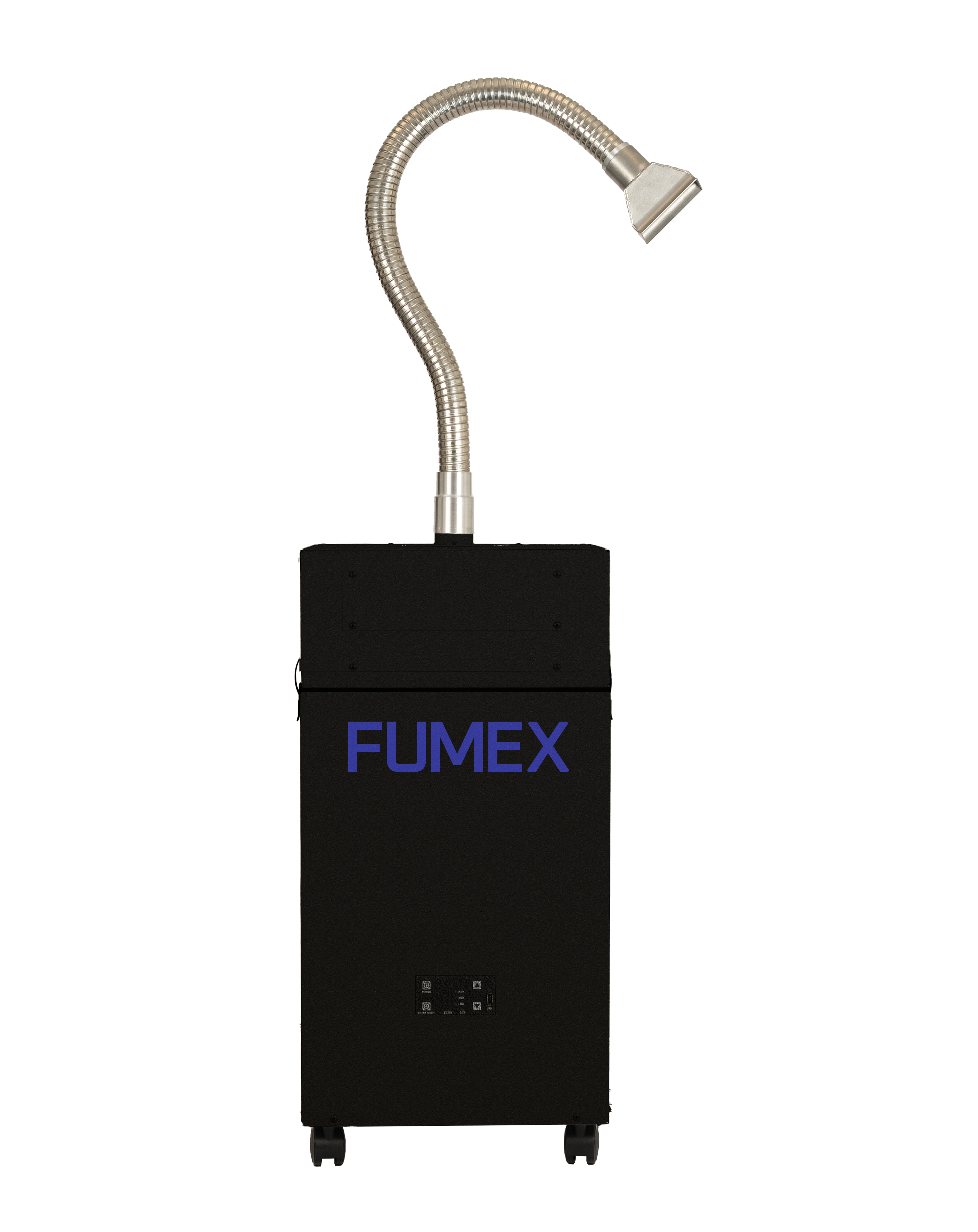

GS2-200 shown with spark trap, steel flex arm and rectangular hood (sold separately)
Product meta image

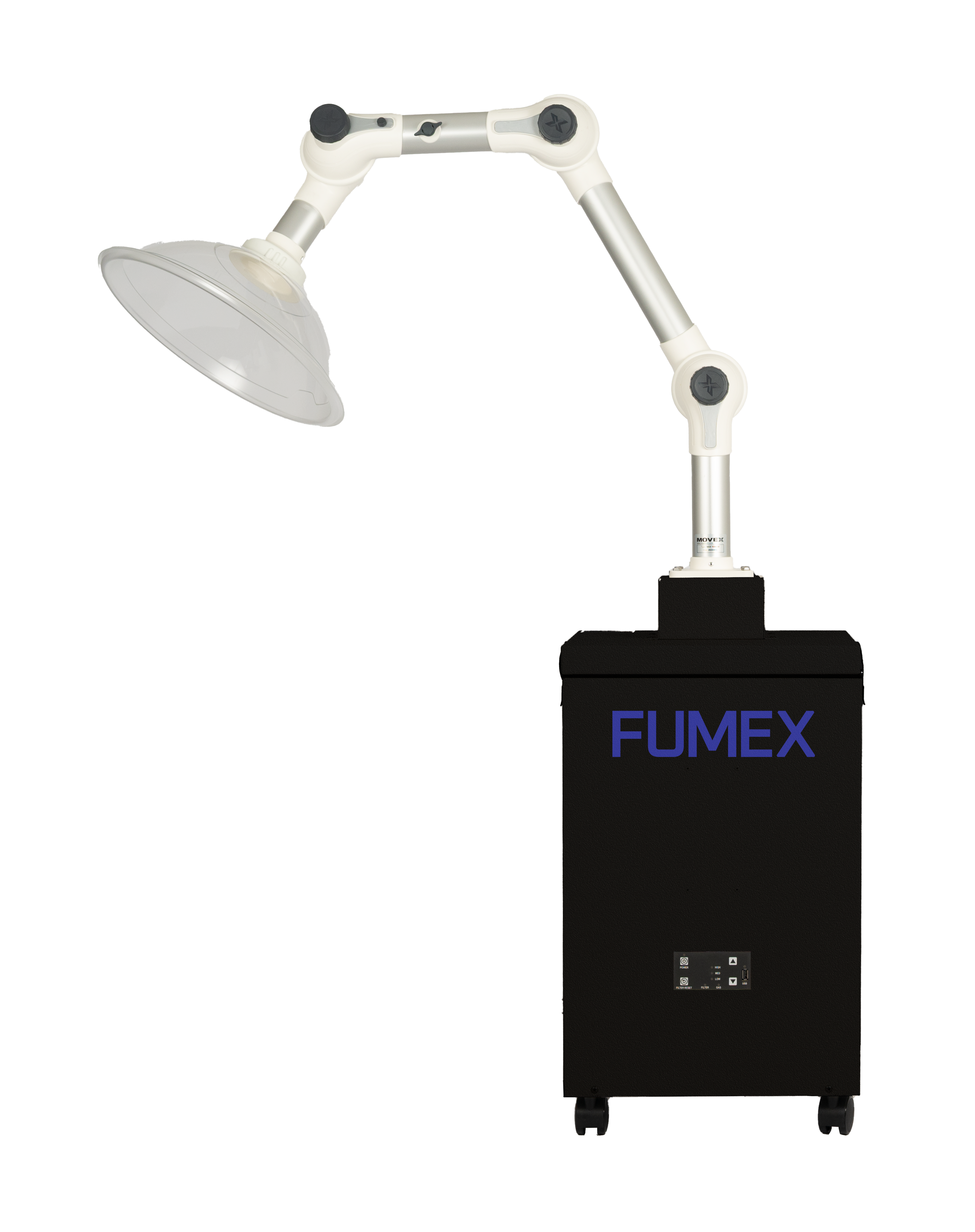

GS2-200 shown with articulating arm and bell hood (sold separately)
Product meta image

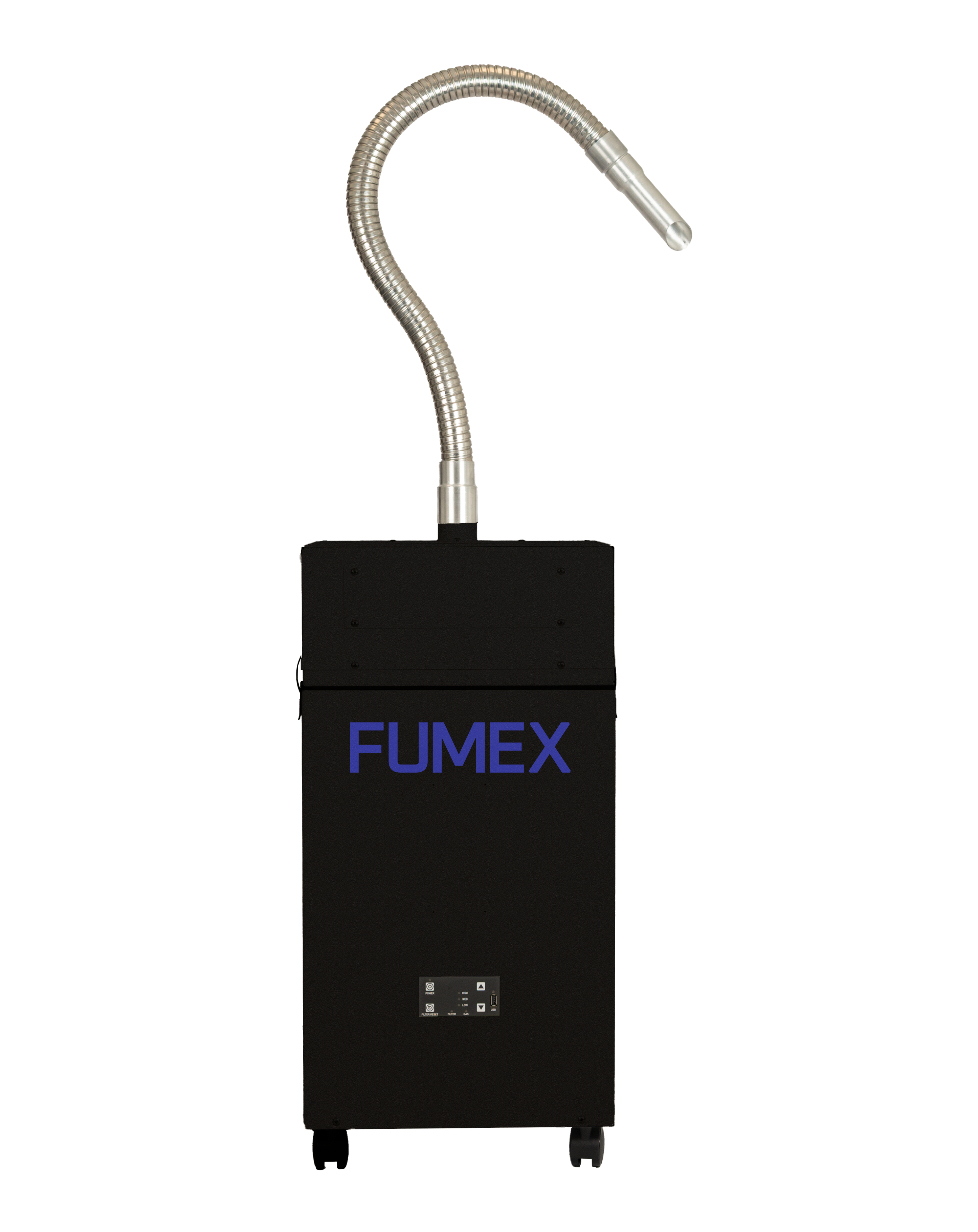

GS2-200 show with spark trap, steel flex arm and straight nozzle (sold separately)
Product meta image

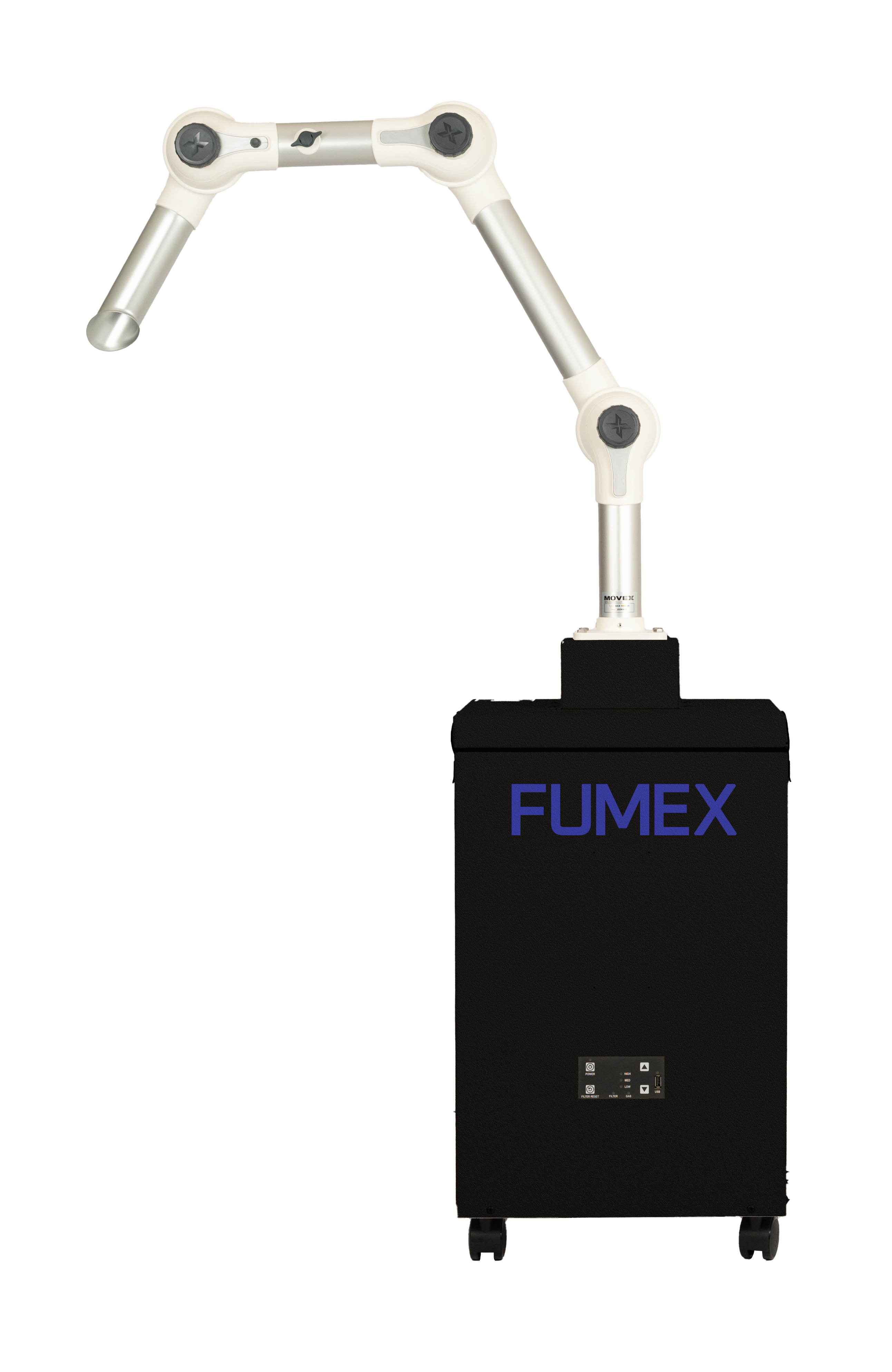

GS2-200 shown with articulating arm (sold separately)

Fumex GS2-200

Price
$0.00
$0.00
14 Days Return Policy

Specifications

  • Construction: 16 ga. welded steel, powder coat finish, baffled, sound attenuated
  • Finish: Black Powder Coat Finish
  • Sound Level: 59 dBA
  • Weight: 65 lbs.
  • Inlet Options: 1 x 2", 1 x 3", 1 x 4" or 2 x 2"
  • Wheels / Base: (4) Industrial grade wheels
  • Blower Performance: 165 cfm @ 19" wc
  • Blower Type: Centrifugal, direct-drive, brushless motor
  • Blower Speed: Variable speed
  • Motor Rating: Rated 20,000 hour+ MTBF
  • Voltage Range: 90/250/1/50-60 (120v or 240v plug)
  • AMP Draw: 6.0A (120v) or 4.0A (240v)
  • Power Cord: Pre-wired 3 wire power cable, 9 ft. with plug
  • Display / Control: Digital display with variable speed blower, high visibility LED display indicating blower speed, filter and unit system status
  • Blower Control: Electronic variable speed blower control
  • Filter Indicator / Monitoring: High visibility LED filter indicator
  • Gas Sensor: Calibrated electronic VOC gas sensor
  • Digital Interface: Electronic digital interface relay for two-way communication, filter monitoring and remote start/stop control
  • USB Programmability: Programmable via USB port: pressure set points, blower speeds and VOC detection
  • Data Logging: System data logging: blower usage and filter service intervals, accessed via USB port
  • Certifications: UL, ULC and CE/TUV compliance available
  • Rubber Hose: 5 ft. 2-ply ribbed rubber hose with clamps
  • IOM (Manual): Installation guide / Operations manual included
  • Pre-Filter: 2" polyester pre-filter (FX7)
  • Chemical Adsorption / Carbon Filter: 12" high odor gas / carbon filter, large capacity with 20 lbs. activated carbon, broad spectrum gas/odor control, bonded carbon technology, dustless construction, 100% recyclable (FX1)
  • Typical Use Cases: Inkjet printing, gluing stations, laboratory, 3D printing, copier/printing rooms, photography labs, solvents, chemical baths, beauty/nail salons
  • Duty Level: Light to medium duty fume extraction
  • Payment Terms: Net 30 days with approved credit
  • FOB Point: Kennesaw (Atlanta), GA
  • FA1/M Relay Cable
  • Lumberg Connector 3' Cable
  • Rt Angle Connector
  • FA122 - 1" x 4" Rectangular Hood
  • FA125 - 3" Bell-Mouth Hood for 2" Hosing
  • FA127 - 4" Bell-Mouth Hood for 3" Hosing
  • FA126 - 2" Straight Nozzle for 2" Hosing
  • FA128 - 3" Straight Nozzle for 3" Hosing
  • FXA-127 - Straight Nozzle Hood
  • FA151 - Bench Hood
  • FAMEK 350-50 - 14" Domed Hood for 2" Articulating Arm
  • FAMEK 350-75 - 14" Domed Hood for 3" Articulating Arm
  • A-28-2 - 2" Articulating Arm, 3 joints, 40" Length
  • A-28-3 - 3" Articulating Arm, 3 joints, 40" Length
  • FXA-36-31 - 36" Stainless Steel Flexible Arm (2" Inlet)
  • FXA-48-31 - 4 ft. Stainless Steel Flexible Arm (2" Inlet)

Replacement Filters

GS2-200 Standard Filter Set

GS2-200 Standard Filter Set

Standard Filter Set

$276.00
$276.00
Replacement Filter FX7 | Fits Model GS2-200

Replacement Filter FX7 | Fits Model GS2-200

Replacement Filter

$29.00
$29.00
Replacement Filter FX1 | Fits Model GS2-200

Replacement Filter FX1 | Fits Model GS2-200

Replacement Filter

$247.00
$247.00
