F SERIES UNITS

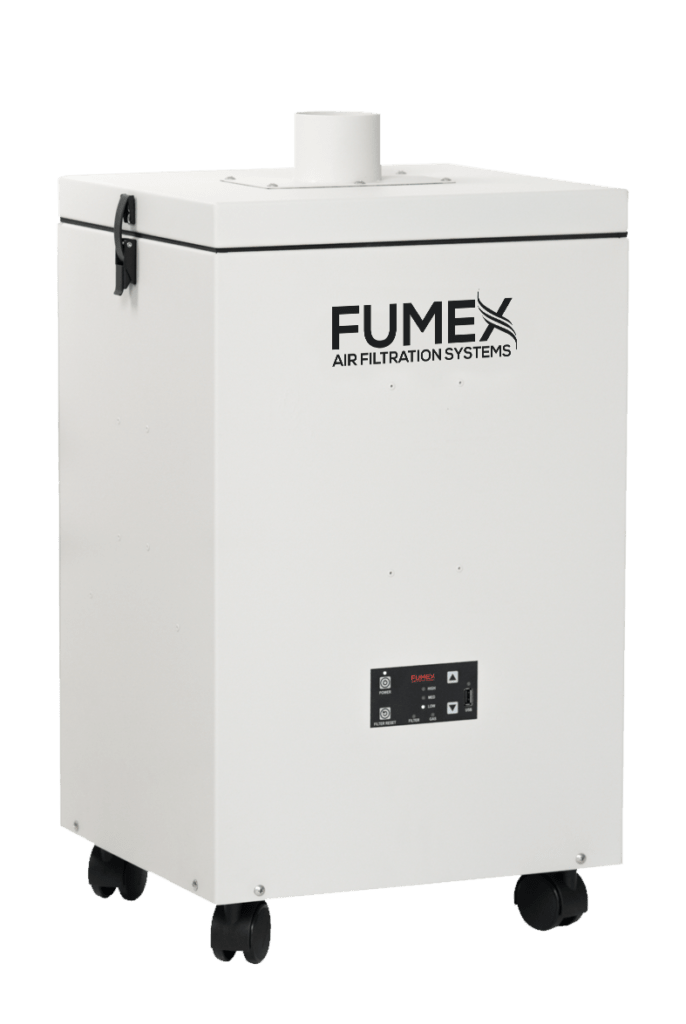

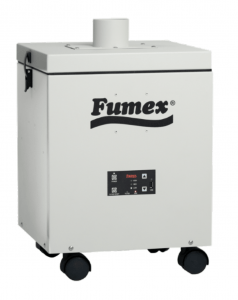

Fumex Model FA1 Mini

Cabinet Construction
16-gauge welded steel Double powder coated painted steel Baffled sound attenuated

Dimensions
18 ½” H x 13 ⅝” L 13 ⅝” W

Sound Level
59 dBA

Weight
60 lbs.

Inlet Options
1 x 2”, 1 x 3” or 2 x 2”

Blowers Performance
165 cfm @ 19” wc
Centrifugal – direct-drive, brushless motor 20,000 hr. + mtbf

Electrics Controls
90/250/1/50-60 (120v or 240v plug) Digital display with variable speed blower Pre-wired 3 wire power cable, 9 ft. with plug

Optional Relay Wiring
for PLC Yes Fumex Part # FA228 Two-way communication

Digital Controls
Electronic variable speed blower control High visibility filter indicator

Standard Equipment
UL, ULC and CE/TUV compliance available 5 ft. 2-ply ribbed rubber hose with clamps Digital control Board (4) Industrial grade wheels Installation guide / Operations manual

Standard Filter Set
3” Pre-Filters: Polyester Filter: FA103 Pleated Panel: FA102 85% efficient MERV 11

2” – HEPA Filter: FA100-2 99.97% efficient @ 0.3 micron

2” – Gas / Odor filter: FA101D Provides broad spectrum gas/odor control

Bonded carbon construction technology

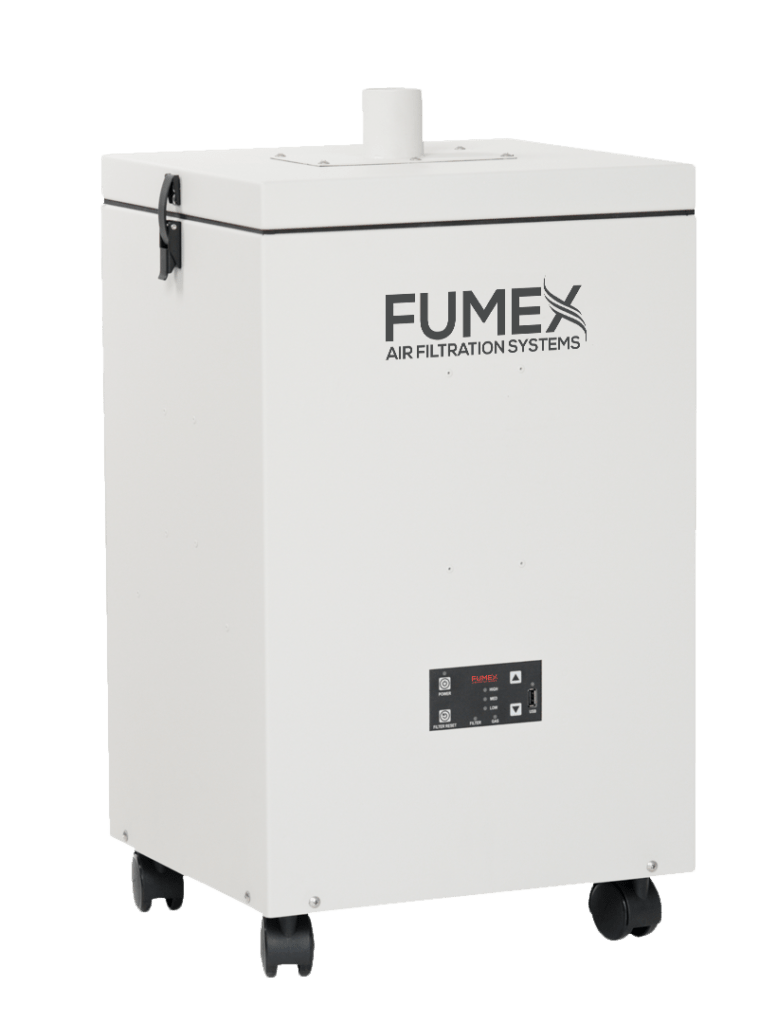

Fumex Model FA1

Cabinet Construction
16-gauge welded steel Double powder coated painted steel Baffled sound attenuated

Dimensions
25 ½” H x 13 ¾” L 15 ¼” W

Sound Level
59 dBA

Weight
65 lbs.

Inlet Options
1 x 2”, 1 x 3” or 2 x 2”

Blowers Performance
165 cfm @ 19” wc Centrifugal – direct-drive, brushless motor 20,000 hr. + mtbf

Electrics Controls
90/250/1/50-60 (120v or 240v plug) Digital display with variable speed blower Pre-wired 3 wire power cable, 9 ft. w/plug

Optional Relay Wiring for PLC
Yes
Fumex Part # FA228
Two-way communication

Digital Controls
Electronic variable speed blower control High visibility filter indicator

Standard Equipment
UL, ULC and CE/TUV compliance available 5 ft. 2-ply ribbed rubber hose with clamps Digital control Board (4) Industrial grade wheels Installation guide / Operations manual

Standard Filter Set 5.5” Pre-Filter: FA102B, FA100, FA101D
85% efficient MERV 11

6” – HEPA Filter: FA100
Large capacity

99.97% efficient @ 0.3 micron

2” – Gas/ Odor filter: FA101D
Provides broad spectrum gas/odor control

Bonded carbon construction technology

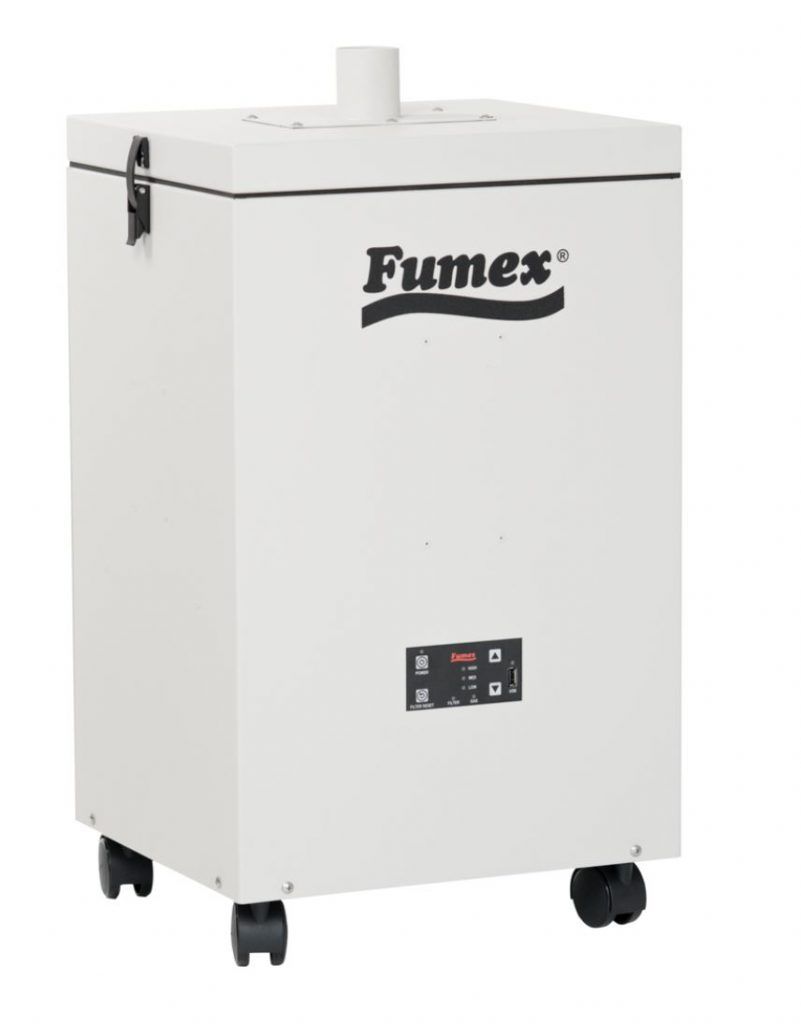

Fumex Model FA1-E

Cabinet Construction
16-gauge welded steel Double powder coated painted steel. Baffled sound attenuated

Dimensions
25 ½” H x 13 ¾” L 15 ¼” W

Sound Level
59 dBA

Weight
65 lbs.

Inlet Options
1 x 2”, 1 x 3” or 2 x 2”

Blowers Performance
165 cfm @ 19” wc Centrifugal – direct-drive, brushless motor 20,000 hr. + mtbf

Electrics Controls
90/250/1/50-60 (120v or 240v plug) Digital display with variable speed blower Pre-wired 3 wire power cable, 9 ft. w/plug

Optional Relay Wiring for PLC
Yes Fumex Part # FA228 Two-way communication

Digital Controls
Electronic variable speed blower control High visibility filter indicator

Standard Equipment
UL, ULC and CE/TUV compliance available 5 ft. 2-ply ribbed rubber hose with clamps Digital control Board (4) Industrial grade wheels Installation guide / Operations manual

Standard Filter Set
5.5” Pre-Filter: FA102B, FA100-2, FA201D
85% efficient MERV 11 2” HEPA Filter: FA100-2 99.97% efficient @ 0.3 micron

6” – Gas / Odor filter: FA201D Large capacity

Provides broad spectrum gas/odor control

Bonded carbon construction technology

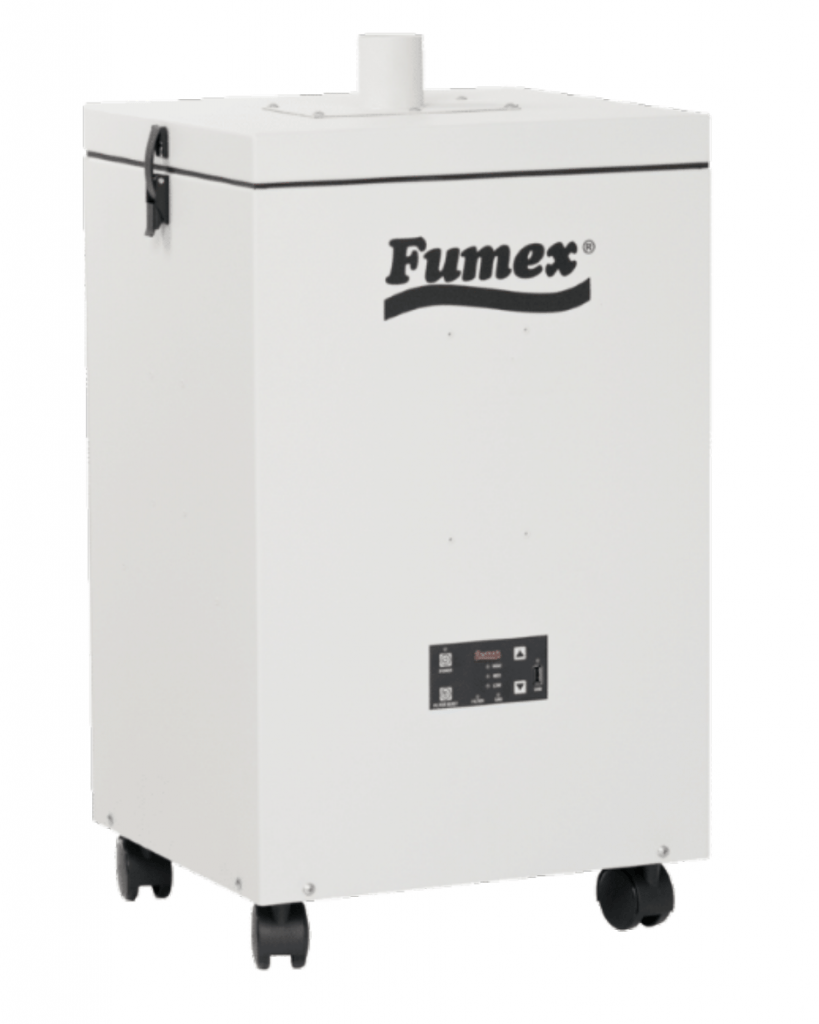

Fumex Model FA1-HF

Cabinet Construction
16-gauge welded steel Double powder coated painted steel Baffled sound attenuated

Dimensions
25 ½” H x 13 ¾” L
15 ¼” W

Sound Level
59 dBA

Weight
65 lbs.

Inlet Options
1 x 2”, 1 x 3” or 2 x 2”

Blowers Performance
266 cfm @ 39” wc Centrifugal – direct-drive, brushless motor 20,000 hr. + mtbf

Electrics Controls
90/250/1/50-60
(120v or 240v plug)
Digital display with variable speed blower
Pre-wired 3 wire power cable, 9 ft. w/plug

Optional Relay Wiring for PLC
Yes
Fumex Part # FA228
Two-way communication

Digital Controls
Electronic variable speed blower control
High visibility filter indicator

Standard Equipment
UL, ULC and CE/TUV compliance available
5 ft. 2-ply ribbed rubber hose with clamps
Digital control Board
(4) Industrial grade wheels
Installation guide / Operations manual

Standard Filter Set
5.5” Pre-Filter: FA102B
85% efficient MERV 11

6” – HEPA Filter: FA100
Large capacity

99.97% efficient @ 0.3 micron

2” – Gas/ Odor filter: FA101D
Provides broad spectrum gas/odor control

Bonded carbon construction technology

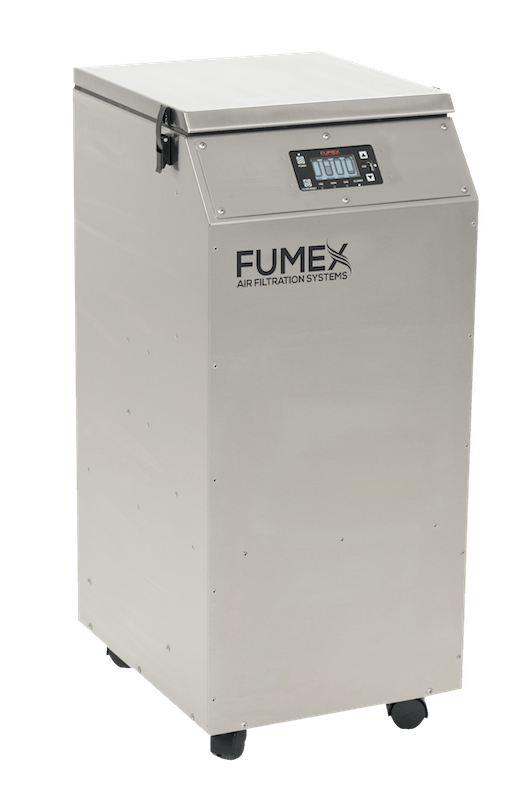

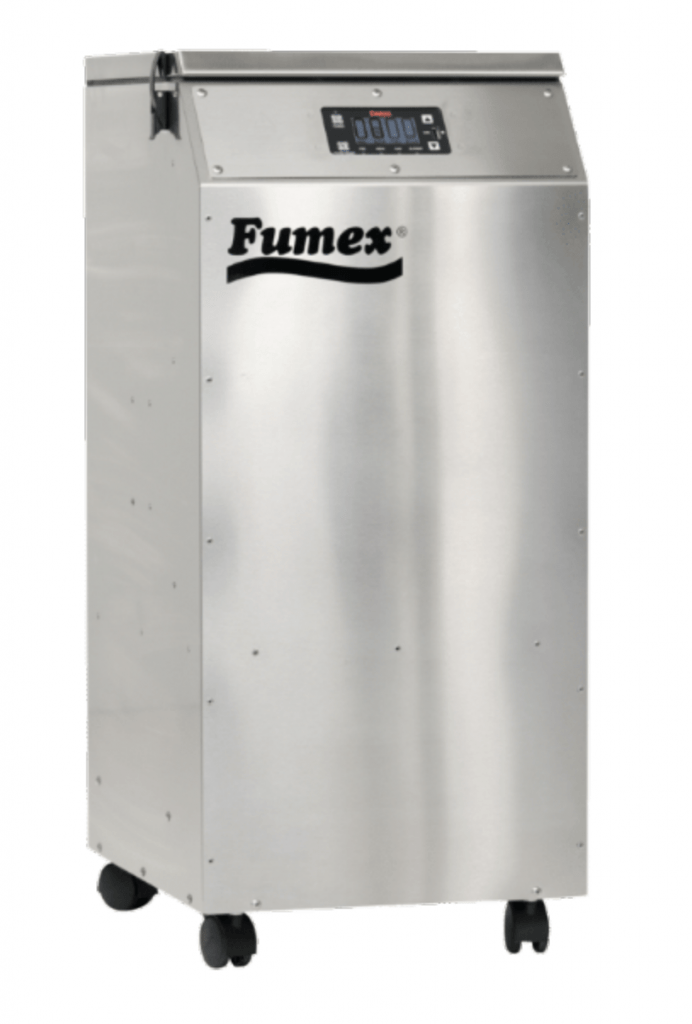

Fumex Model FA2

Cabinet Construction
304 grade Brushed stainless steel IP56 compliance Baffled sound attenuated

Dimensions
35 ¾” H x 18 ½” L 15 ¼” W

Sound Level
60 dBA

Weight
101 lbs.

Inlet Options
2”, 3” or 4”

Blowers Performance
266 cfm @ 39” wc
Centrifugal – direct-drive, brushless motor
20,000 hr. + mtbf

Electrics Controls
90/250/1/50-60
(120v or 240v plug)
Digital display with variable speed blower
Pre-wired 3 wire power cable, 9 ft. w/plug

Optional Relay Wiring for PLC
Yes
Fumex Part # FA227
Two-way communication

Digital Controls
Electronic variable speed blower control
Electronic individual filter monitoring w/ display
Calibrated electronic gas sensor

Standard Equipment
UL, ULC and CE/TUV compliance available
8 ft. 2-ply ribbed rubber hose with clamps
Digital graphic display/controls
(4) Industrial grade wheels – 2 locking
Installation guide / Operations manual

Standard Filter Set
10” Pre-Filter: FA140B-2, FA100, FA201D
Large capacity
99% efficient @ 1.0 micron

6” – HEPA Filter: FA100
99.97% efficient @ 0.3 micron

6” – Gas / Odor filter: FA201D
Provides broad spectrum gas/odor control

Bonded carbon construction technology

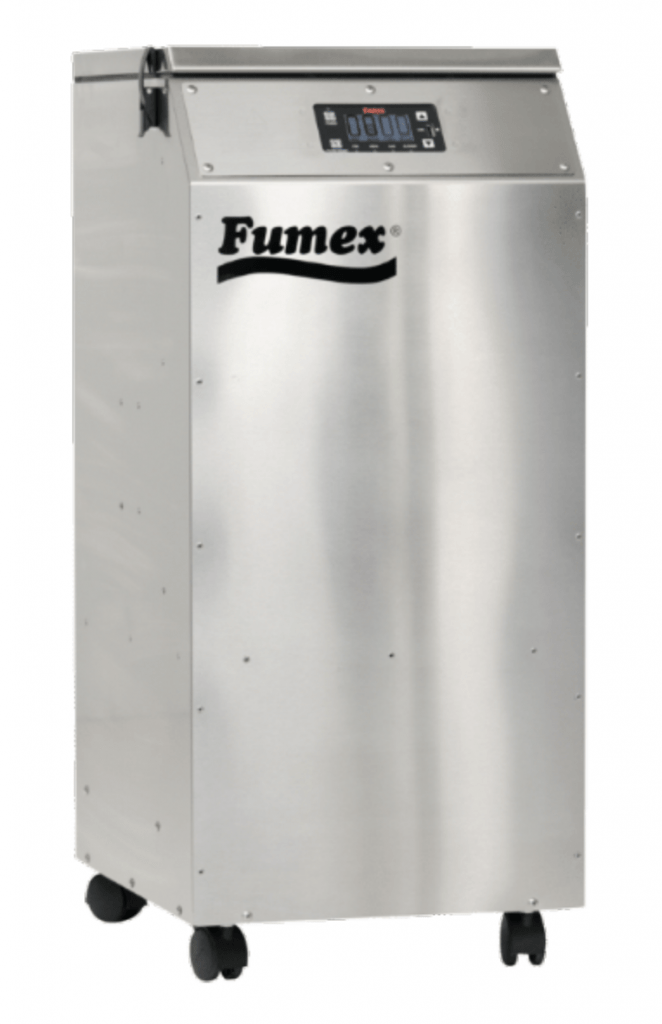

Fumex Model FA2-E

Cabinet Construction
304 grade Brushed stainless steel
IP56 compliance Baffled sound attenuated

Dimensions
35 ¾” H x 18 ½” L 15 ¼” W

Sound Level
60 dBA

Weight
101 lbs.

Inlet Options
2”, 3” or 4”

Blowers Performance
266 cfm @ 39” wc
Centrifugal – direct-drive, brushless motor
20,000 hr. + mtbf

Electrics Controls
90/250/1/50-60
(120v or 240v plug)
Digital display with variable speed blower
Pre-wired 3 wire power cable, 9 ft. w/plug

Optional Relay Wiring for PLC
Yes
Fumex Part # FA227
Two-way communication

Digital Controls
Electronic variable speed blower control
Electronic individual filter monitoring w/ display
Calibrated electronic gas sensor

Standard Equipment
UL, ULC and CE/TUV compliance available
8 ft. 2-ply ribbed rubber hose with clamps
Digital graphic display/controls
(4) Industrial grade wheels – 2 locking
Installation guide / Operations manual

Standard Filter Set
10” Pre-Filter: FA140B-2
Large capacity
99% efficient @ 1.0 micron

6” – HEPA Filter: FA100
99.97% efficient @ 0.3 micron

6” – Gas / Odor filter: FA201D
Provides broad spectrum gas/odor control

Bonded carbon construction technology

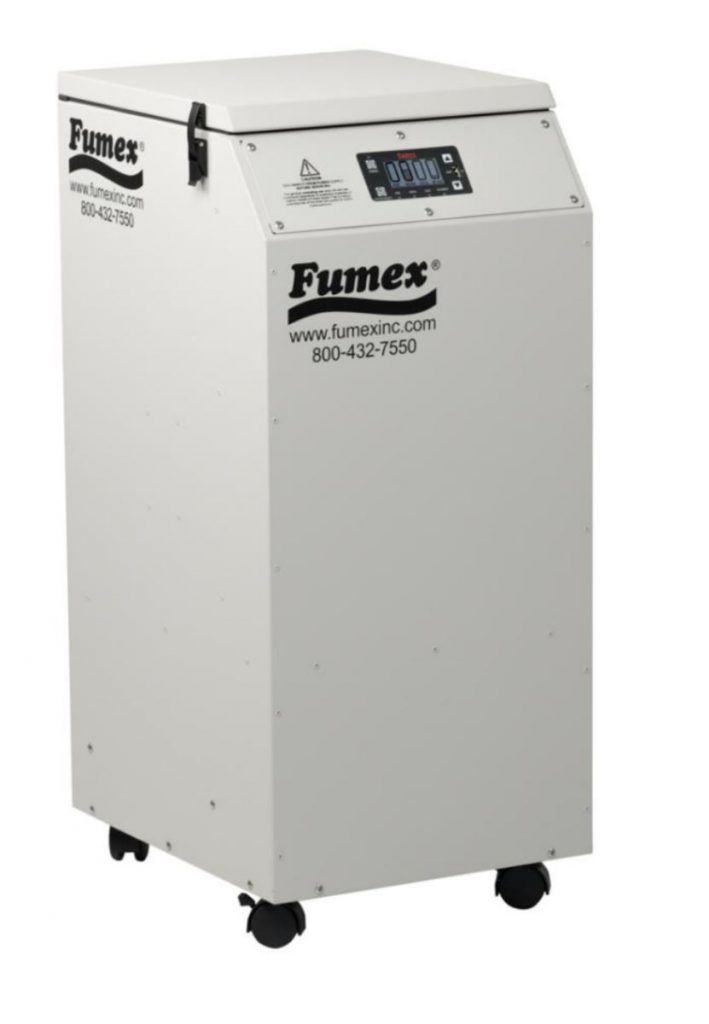

Fumex Model FA2-P
Cabinet Construction
Double powder coated painted steel Baffled sound attenuated

Dimensions
35 ¾” H x 18 ½” L 15 ¼” W

Sound Level
60 dBA

Weight
101 Lbs.

Inlet Options
2”, 3” or 4”

Blowers Performance
266 cfm @ 39” wc
Centrifugal – direct-drive, brushless motor
20,000 hr. + mtbf
Electrics Controls
90/250/1/50-60 (120v or 240v plug)
Digital display with variable speed blower
Pre-wired 3 wire power cable, 9 ft. w/plug

Optional Relay Wiring for PLC
Yes
Fumex Part # FA227
Two-way communication

Digital Controls
Electronic variable speed blower control
Electronic individual filter monitoring w/ display
Calibrated electronic gas sensor
Standard Equipment
UL, ULC and CE/TUV compliance available
8 ft. 2-ply ribbed rubber hose with clamps
Digital graphic display/controls
(4) Industrial grade wheels – two locking
Installation guide / Operations manual

Standard Filter Set
10” Pre-Filter: FA140B-2
Large capacity
99% efficient @ 1.0 micron
6” – HEPA Filter: FA100
99.97% efficient @ 0.3 micron

6” – Activated Gas / Odor filter: FA201D
Provides broad spectrum gas/odor control

Bonded carbon construction technology

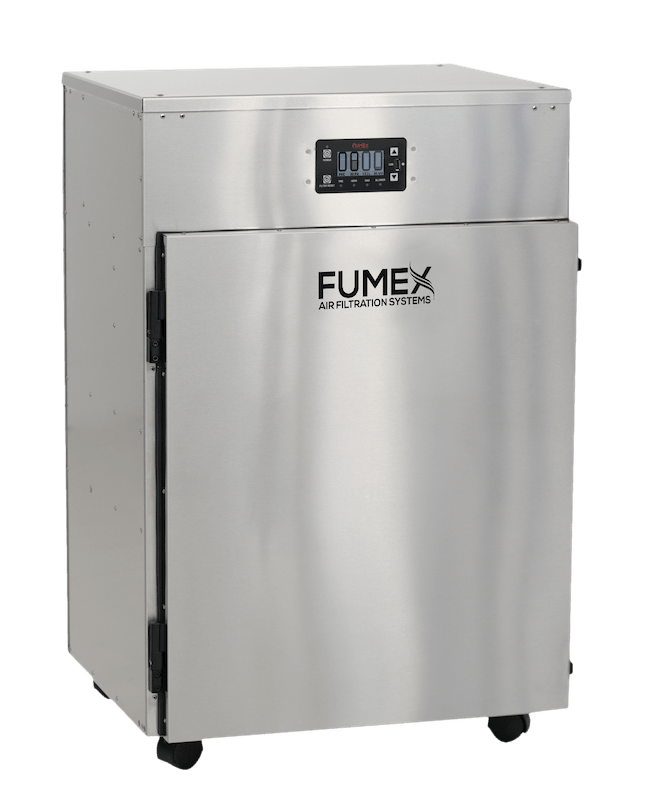

Fumex Model FA5-1

Cabinet Construction
304 grade Brushed
stainless steel
IP56 compliance
Baffled sound attenuated

Dimensions
35 ¼” H x 20 ½” L 22 ⅞” W

Sound Level
59 dBA

Weight
134lbs.

Inlet Options
3”, 4” or 6”

Blowers Performance
305 cfm @ 39” wc
Centrifugal – direct-drive,
brushless motor
20,000 hr. + mtbf

Electrics Controls
90/250/1/50-60
(120v or 240v plug)
Digital display with
variable speed blower
Pre-wired 3 wire power
cable, 9 ft. w/plug

Optional Relay Wiring
Yes
Fumex Part # FA227
two-way communication
Digital Interface Package

Digital Controls
Electronic variable speed blower control
Electronic individual filter monitoring w/ display Calibrated electronic gas
sensor

Standard Equipment
UL, ULC and CE/TUV compliance available
8 ft. 2-ply ribbed rubber
hose with clamps
Digital graphic display/controls
(4) Industrial grade
wheels – two locking
Installation guide /
Operations manual

Standard Filter Set
9” – Pre-Filter: FA540B
Large capacity
99% efficient @ 1.0
micron
4” – HEPA Filter: FA500
99.997% efficient @ 0.3
micron
4” – Activated Gas / Odor
filter: FA501D
Provides broad spe

Fumex Model FA5-2

Cabinet Construction
304 grade Brushed
stainless steel
IP56 compliance
Baffled sound attenuated

Dimensions
35 ¼” H x 20 ½” L 22 ⅞” W

Sound Level
59 dBA

Weight
134lbs.

Inlet Options
3”, 4” or 6”

Blowers Performance
450 cfm @ 39” wc
Centrifugal – direct-drive,
brushless motor
20,000 hr. + mtbf

Electrics Controls
90/250/1/50-60
(120v or 240v plug)
Digital display with
variable speed blower
Pre-wired 3 wire power
cable, 9 ft. w/plug

Optional Relay Wiring
Yes
Fumex Part # FA227
two-way communication
Digital Interface Package

Digital Controls
Electronic variable speed blower control
Electronic individual filter monitoring w/ display Calibrated electronic gas
sensor

Standard Equipment
UL, ULC and CE/TUV compliance available
8 ft. 2-ply ribbed rubber
hose with clamps
Digital graphic display/controls
(4) Industrial grade
wheels – two locking
Installation guide /
Operations manual

Standard Filter Set
9” – Pre-Filter: FA540B
Large capacity
99% efficient @ 1.0
micron
4” – HEPA Filter: FA500
99.997% efficient @ 0.3
micron
4” – Activated Gas / Odor
filter: FA501D
Provides broad spe
