G SERIES UNITS

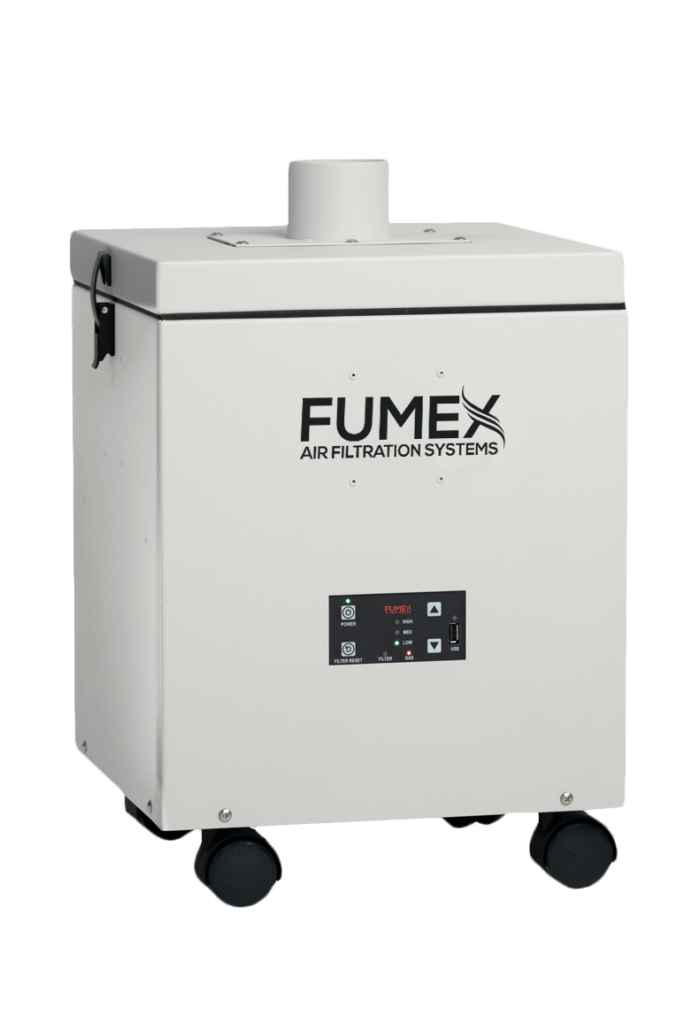

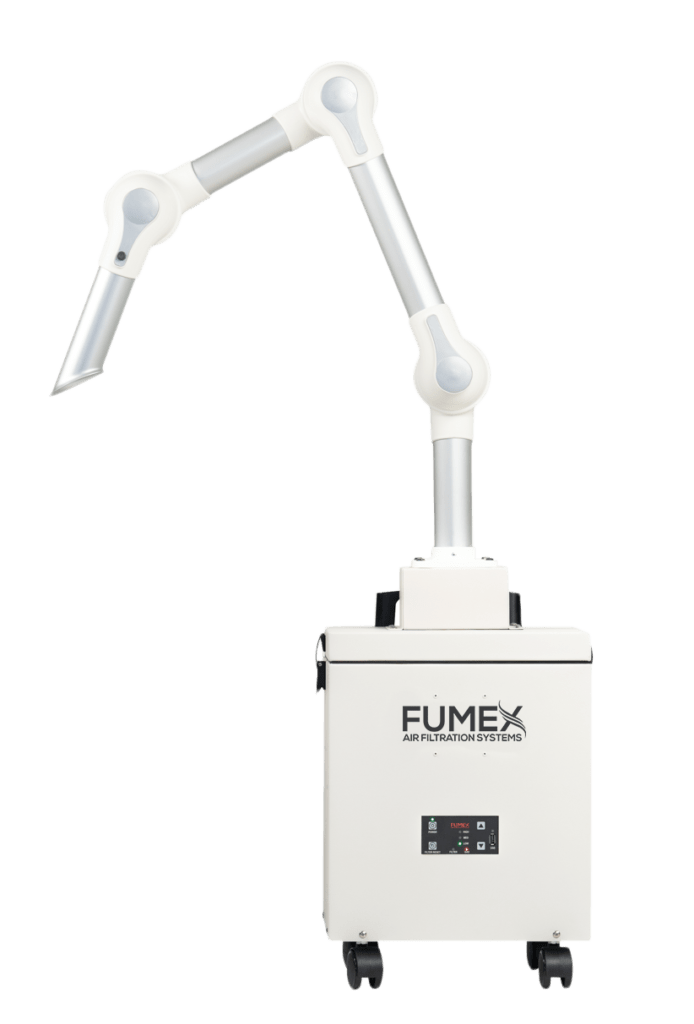

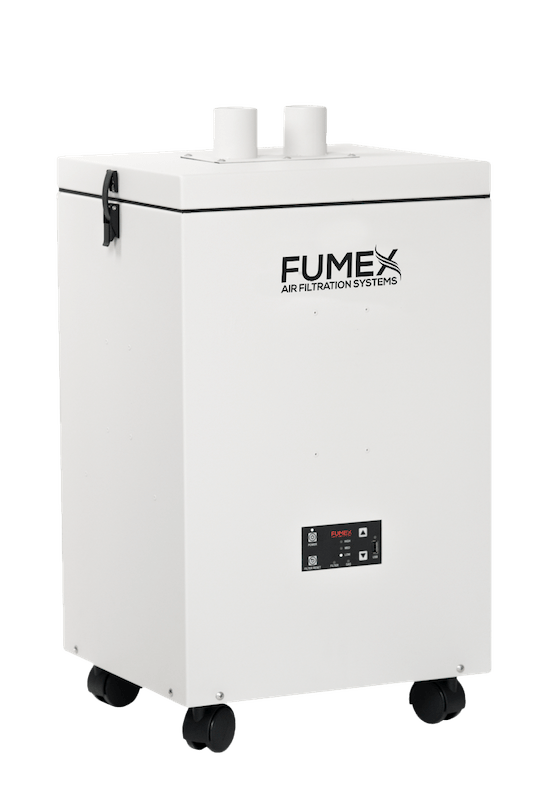

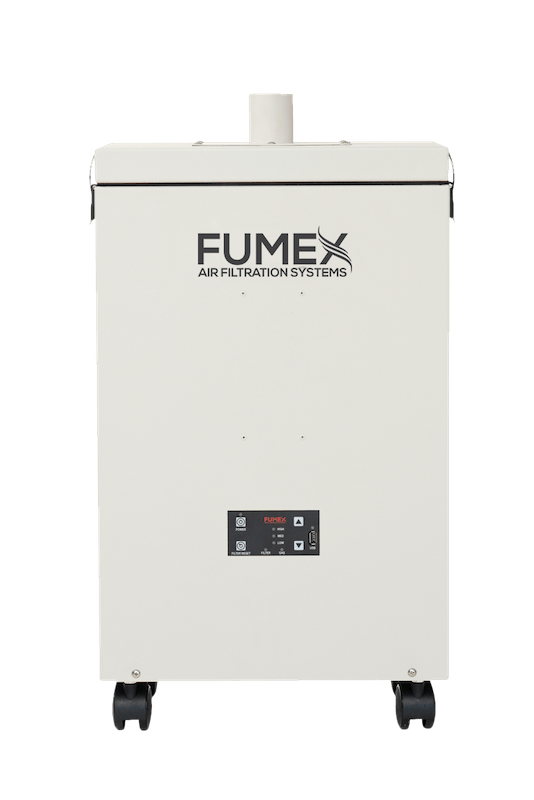

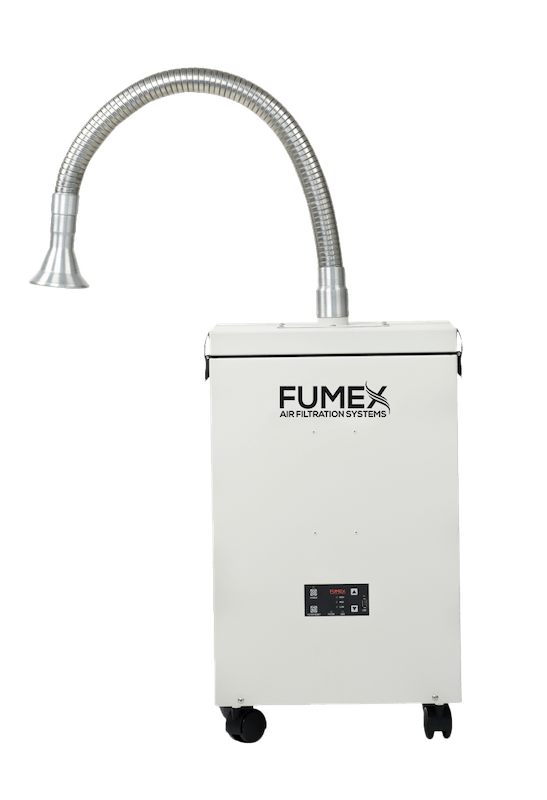

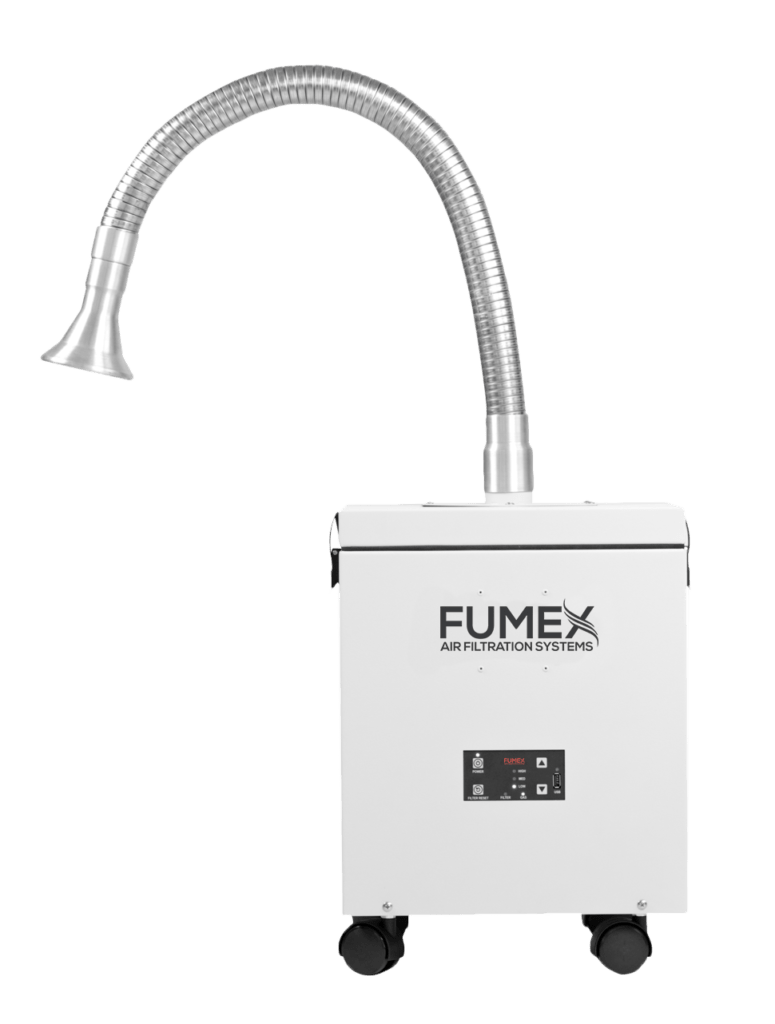

Fumex Model GS1-100
Cabinet Construction
16-gauge welded steel
Double powder coated painted steel.
Baffled sound attenuated

Dimensions
18 ½” H x 13 ⅝” L

13 ⅝” W

Sound Level
59 dBA

Weight
60 lbs.

Inlet Options
1 x 2”, 1 x 3” or 2 x 2”

Blowers Performance
165 cfm @ 19” wc
Centrifugal – direct-drive, brushless motor
20,000 hr. + mtbf
Electrics Controls
90/250/1/50-60 (120v or 240v plug)
Digital control board with variable speed blower
Pre-wired 3 wire power cable, 9 ft. with plug

Optional Relay Wiring for PLC
Fumex Part # FA228
Two-way communication

Digital Controls
Electronic variable speed blower control
Electronic high visibility individual filter
monitoring with LED indicator display
Calibrated VOC electronic gas sensor
Standard Equipment
UL, ULC and CE/TUV compliance available
5 ft. 2-ply ribbed rubber hose with clamps
Digital control Board
(4) Industrial grade wheels Installation guide / Operations manual

Standard Filter Set

6” – Gas / Odor filter: FA201C

15 lbs. of activated carbon media blend

Provides broad spectrum gas/odor control

Bonded carbon construction technology

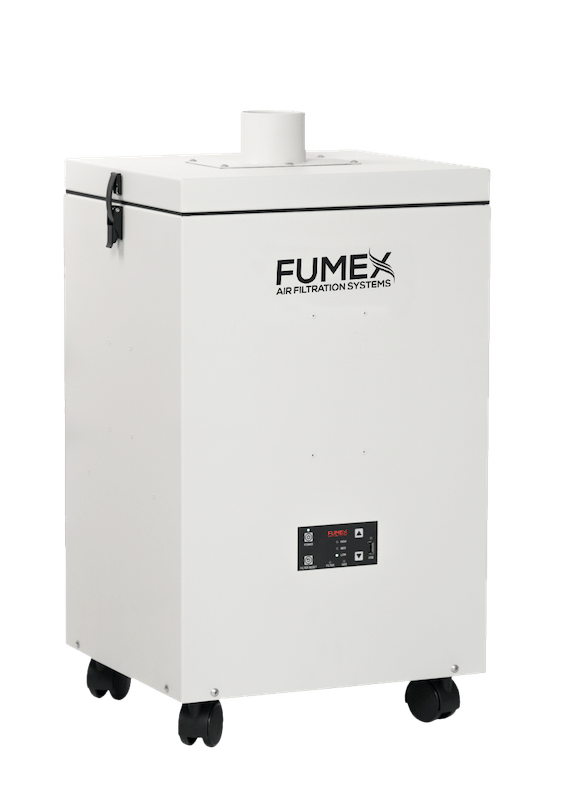

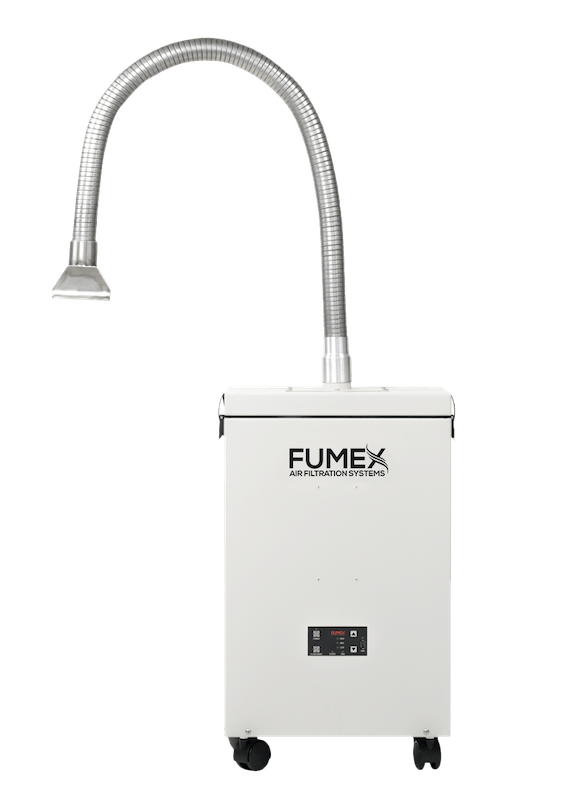

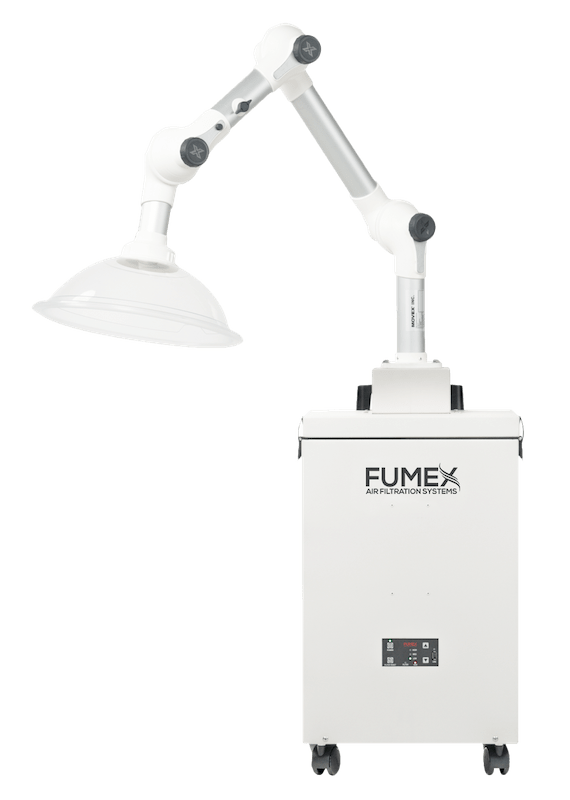

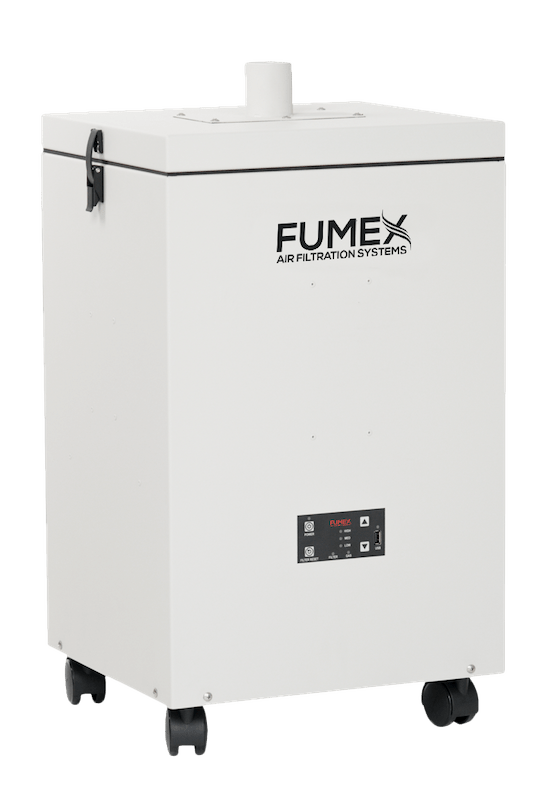

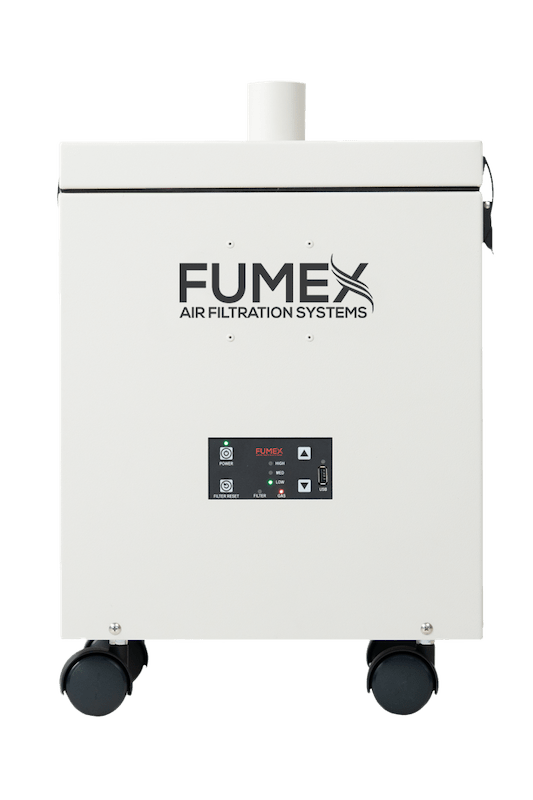

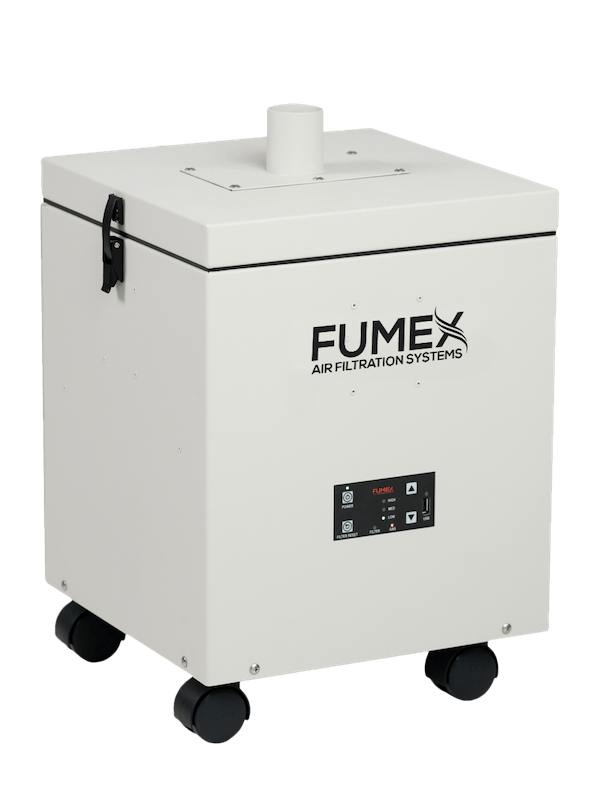

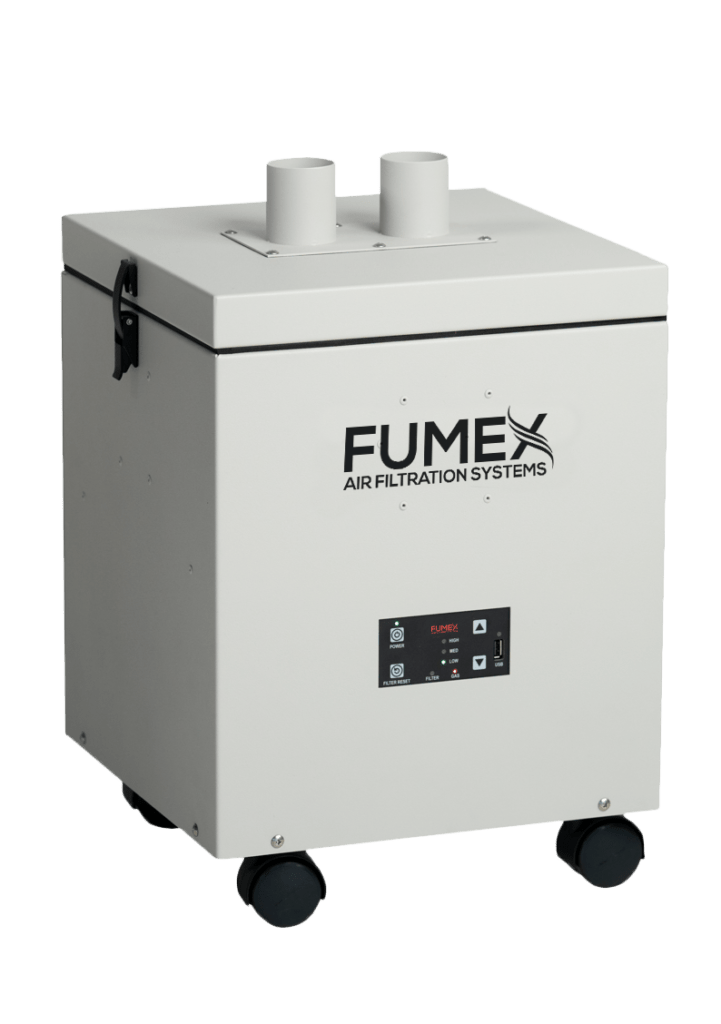

Fumex Model GS2-200
Cabinet Construction
16-gauge welded steel
Double powder coated painted steel.
Baffled sound attenuated

Dimensions
25 ½” H x 13 ¾” L
15 ¼” W

Sound Level
59 dBA

Weight
65 lbs.

Inlet Options 1 x 2”, 1 x 3” or 2 x 2”

Blowers Performance
165 cfm @ 19” wc
Centrifugal – direct-drive, brushless motor
20,000 hr. + mtbf
Electrics Controls
90/250/1/50-60 (120v or 240v plug)
Digital control board with variable speed blower
Pre-wired 3 wire power cable, 9 ft. with plug

Optional Relay Wiring for PLC
Fumex Part # FA228
Two-way communication

Digital Controls
Electronic variable speed blower control
Electronic high visibility individual filter
monitoring with LED indicator display
Calibrated VOC electronic gas sensor
Standard Equipment
UL, ULC and CE/TUV compliance available
5 ft. 2-ply ribbed rubber hose with clamps
Digital control Board
(4) Industrial grade wheels
Installation guide / Operations manual

Standard Filter Set
2” Polyester Pre-Filter: FX7
12” – Gas / Odor filter: FX1
20 lbs. of activated carbon media blend

Provides broad spectrum gas/odor control

Bonded carbon construction technology

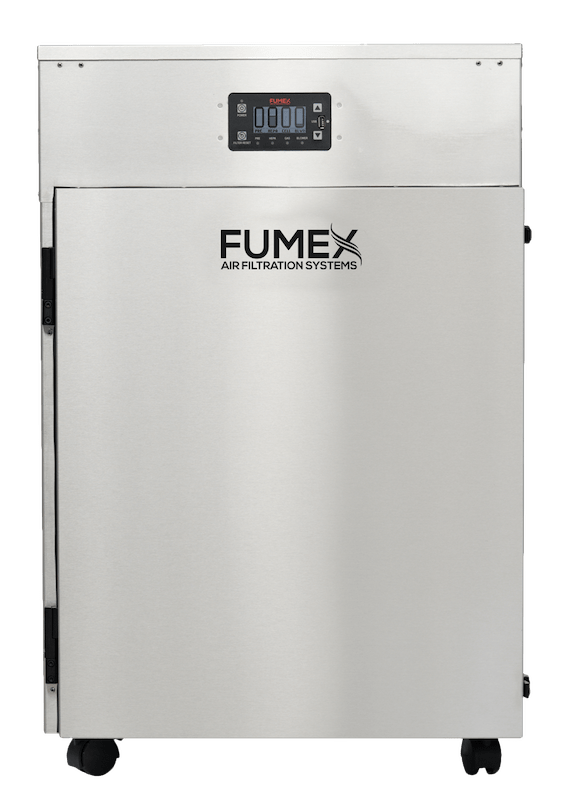

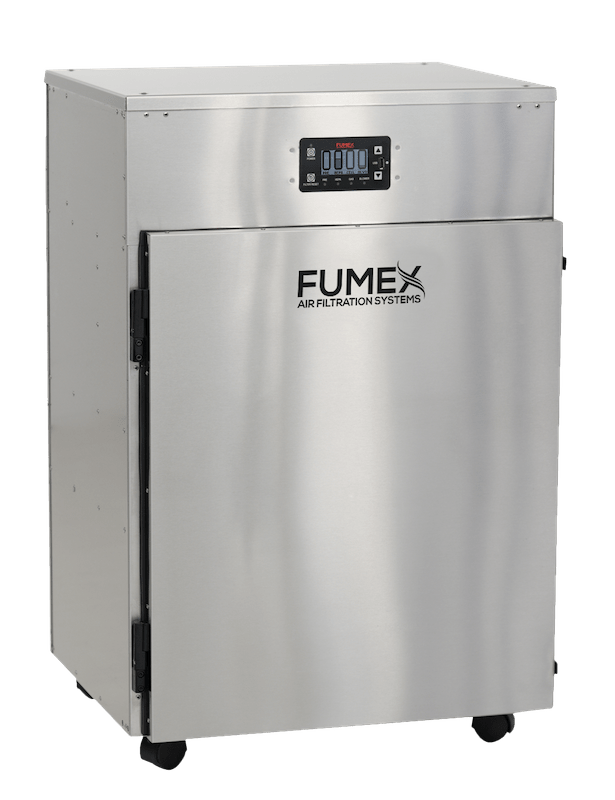

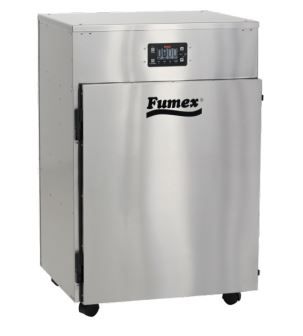

Fumex Model GS3-200
Cabinet Construction
304 grade Brushed stainless steel
IP56 compliance
Baffled sound attenuated

Dimensions
35 ¼” H x 20 ½” L
22 ⅞” W

Sound Level
59 dBA

Weight
134 lbs.

Inlet Options
2”, 3” or 4”

Blowers Performance
305 cfm @ 39” wc
Centrifugal – direct-drive, brushless motor
20,000 hr. + mtbf
Electrics Controls
90/250/1/50-60 (120v or 240v plug)
Digital display with variable speed blower
Pre-wired 3 wire power cable, 9 ft. with plug

Optional Relay Wiring for PLC
Fumex Part # FA227
Two-way communication
Digital Interface Package

Digital Controls
Electronic variable speed blower control
Electronic individual filter monitoring
with digital display
Calibrated VOC electronic gas sensor
Standard Equipment
UL, ULC and CE/TUV compliance available
8 ft. 2-ply ribbed rubber hose with clamps
Digital graphic display/controls
(4) Industrial grade wheels– two locking
Installation guide / Operations manual

Standard Filter Set
9” Pre-Filter: FA540B
Large Capacity
Deep Pleat technology
99% efficient @ 1.0 micron

(Qty 3) – 4” Gas / Odor filters: FA501D
Large capacity gas/odor

90 lbs. of Activated carbon media

Provides broad spectrum gas/odor control

Bonded carbon construction technology

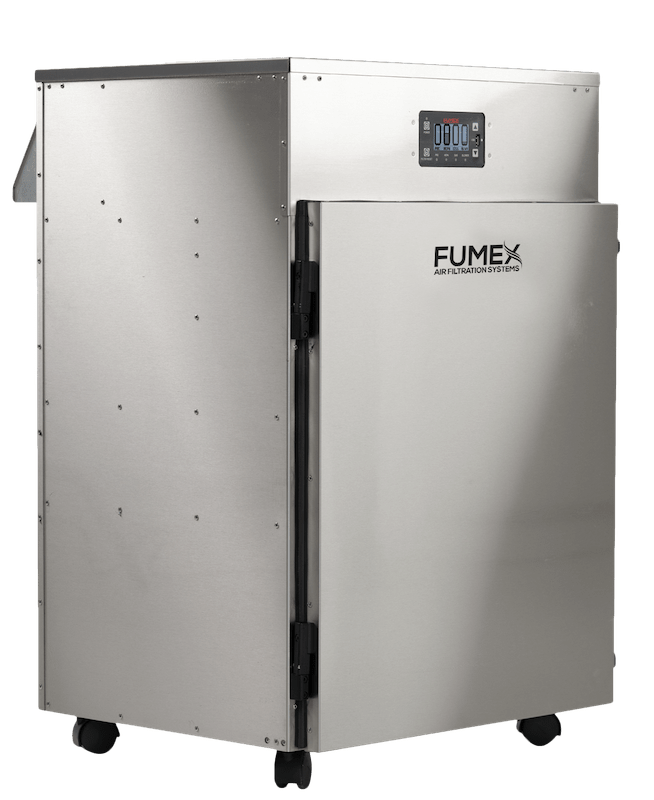

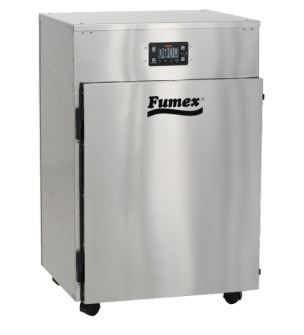

Fumex Model GS3-500
Cabinet Construction
304 grade Brushed stainless steel
IP56 compliance
Baffled sound attenuated

Dimensions
35 ¼” H x 20 ½” L
22 ⅞” W

Sound Level
59 dBA

Weight
134 lbs.

Inlet Options
3”, 4” or 6”

Blowers Performance
450 cfm @ 39” wc
Centrifugal – direct-drive, brushless motor
20,000 hr. + mtbf
Electrics Controls
90/250/1/50-60 (120v or 240v plug)
Digital display with variable speed blower
Pre-wired 3 wire power cable, 9 ft. with plug

Optional Relay Wiring for PLC
Fumex Part # FA227
Two-way communication
Digital Interface Package

Digital Controls
Electronic variable speed blower control
Electronic individual filter monitoring
with digital display Calibrated VOC electronic gas sensor
Standard Equipment
UL, ULC and CE/TUV compliance available
8 ft. 2-ply ribbed rubber hose with clamps
Digital graphic display/controls
(4) Industrial grade wheels– two locking
Installation guide / Operations manual

Standard Filter Set
9” Pre-Filter: FA540B
Large Capacity
Deep Pleat technology
99% efficient @ 1.0 micron

(Qty 3) – 4” Gas / Odor filters: FA501D
Large capacity gas/odor
90 lbs. of Activated carbon media

Provides broad spectrum gas/odor control

Bonded carbon construction technology
